California Cruising, Electric Thinking

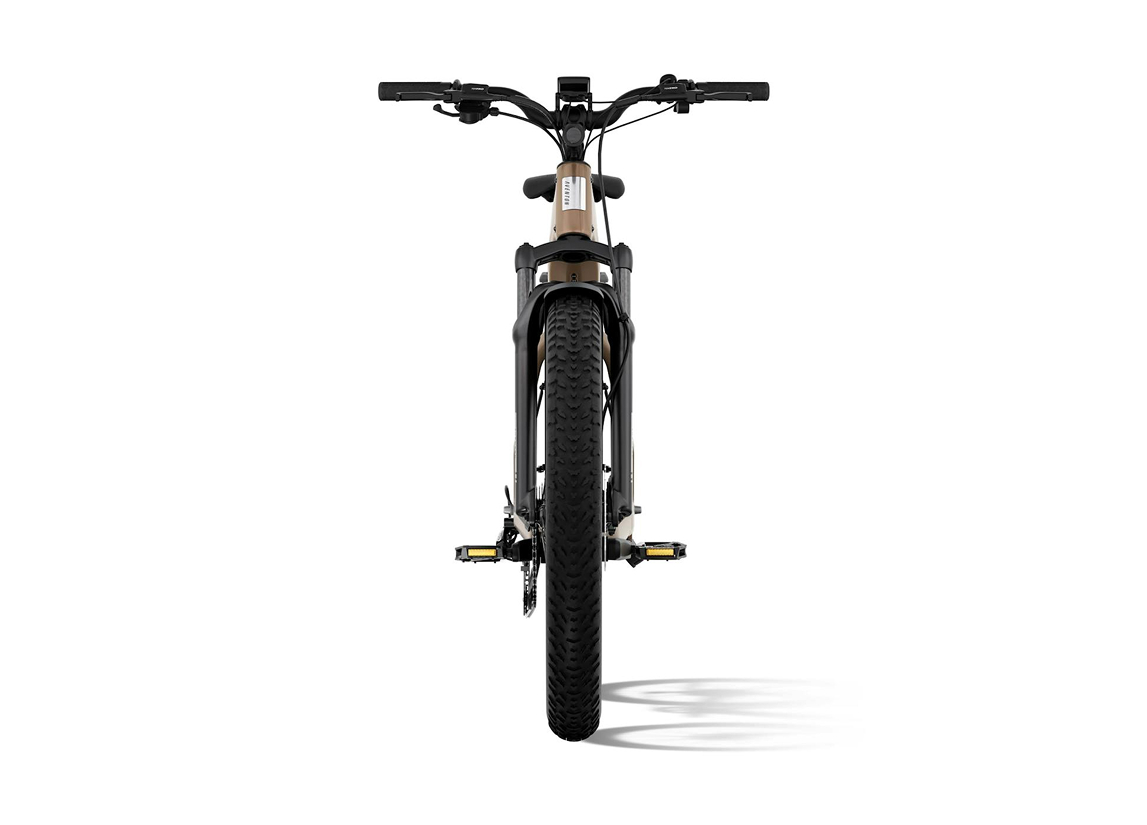

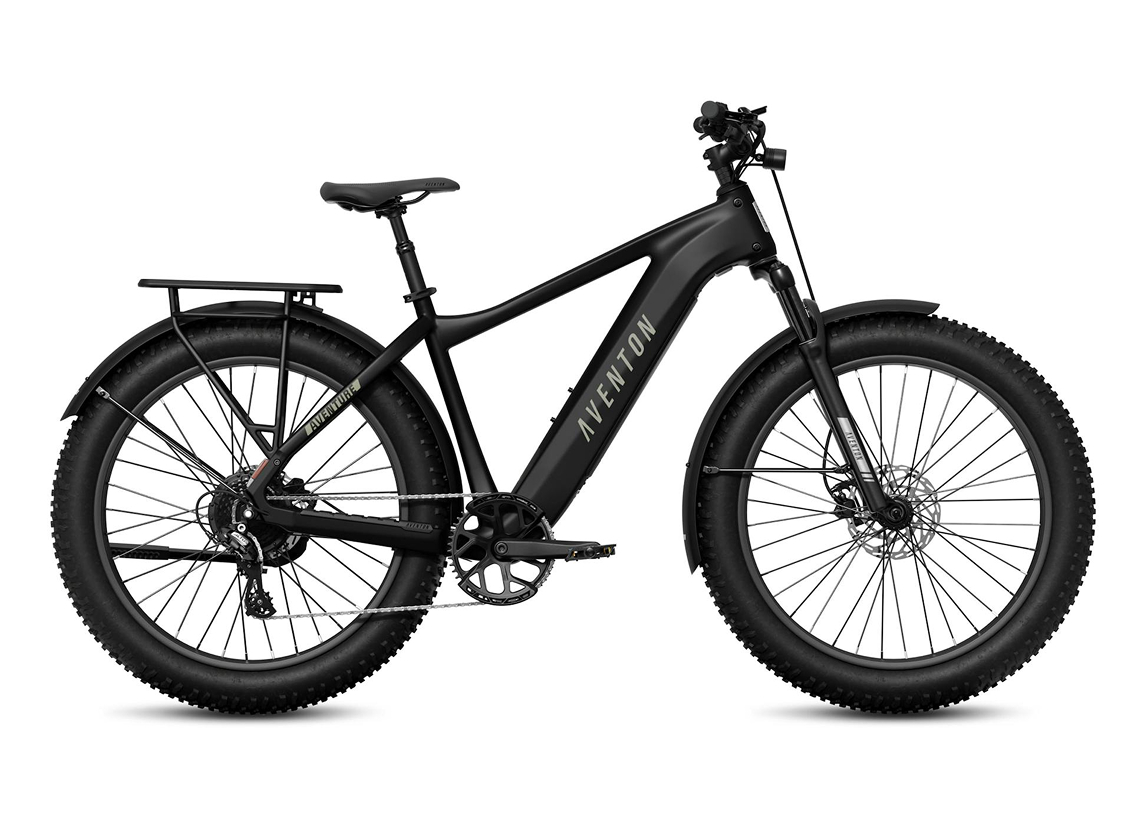

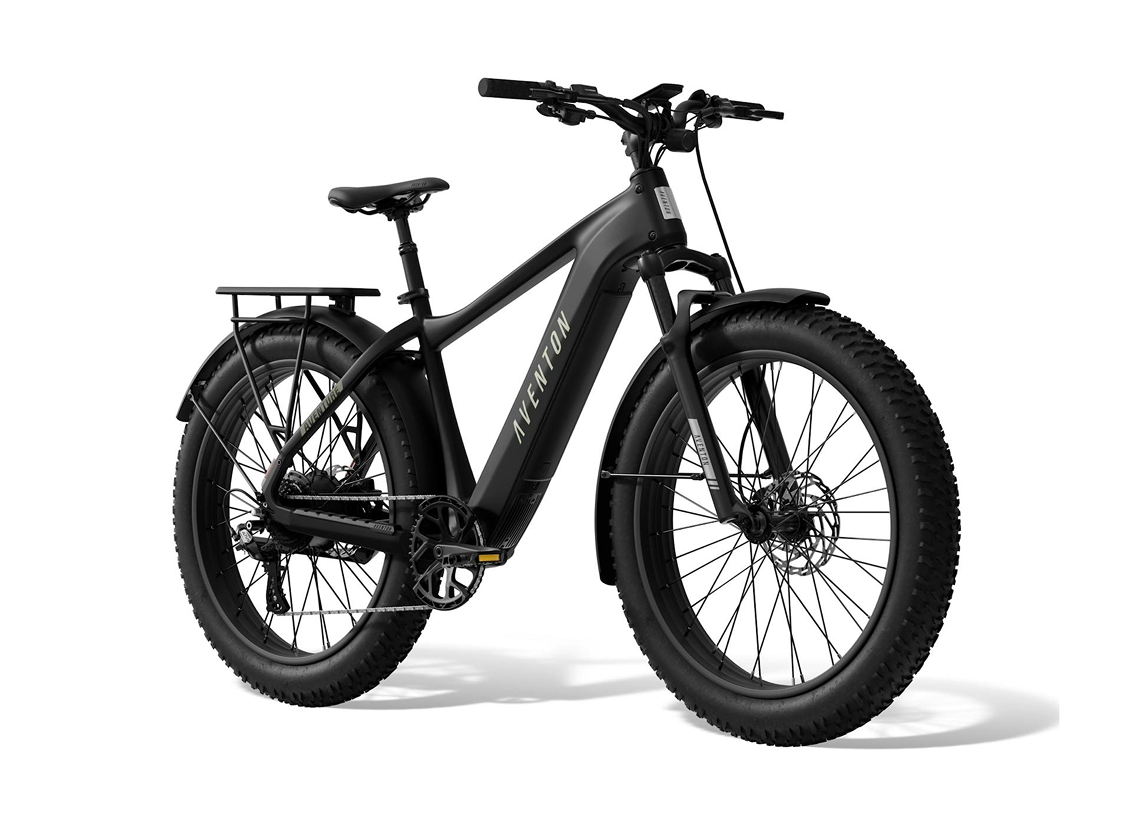

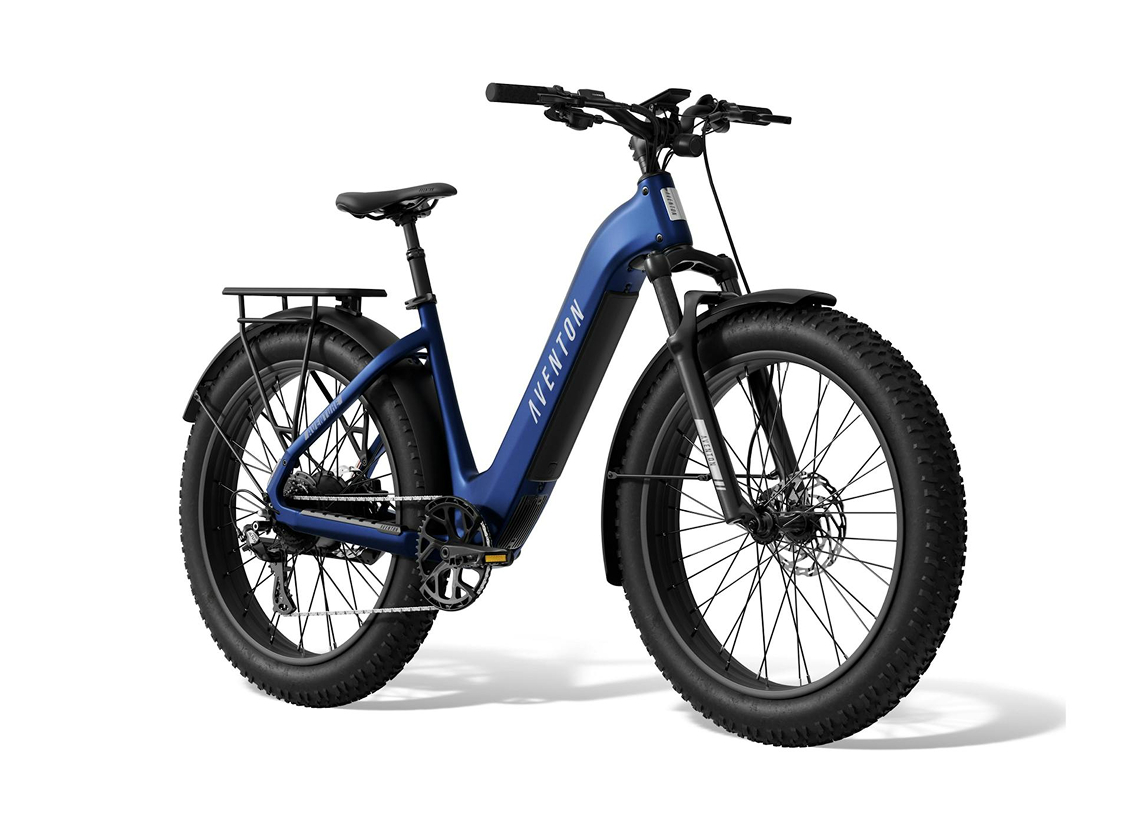

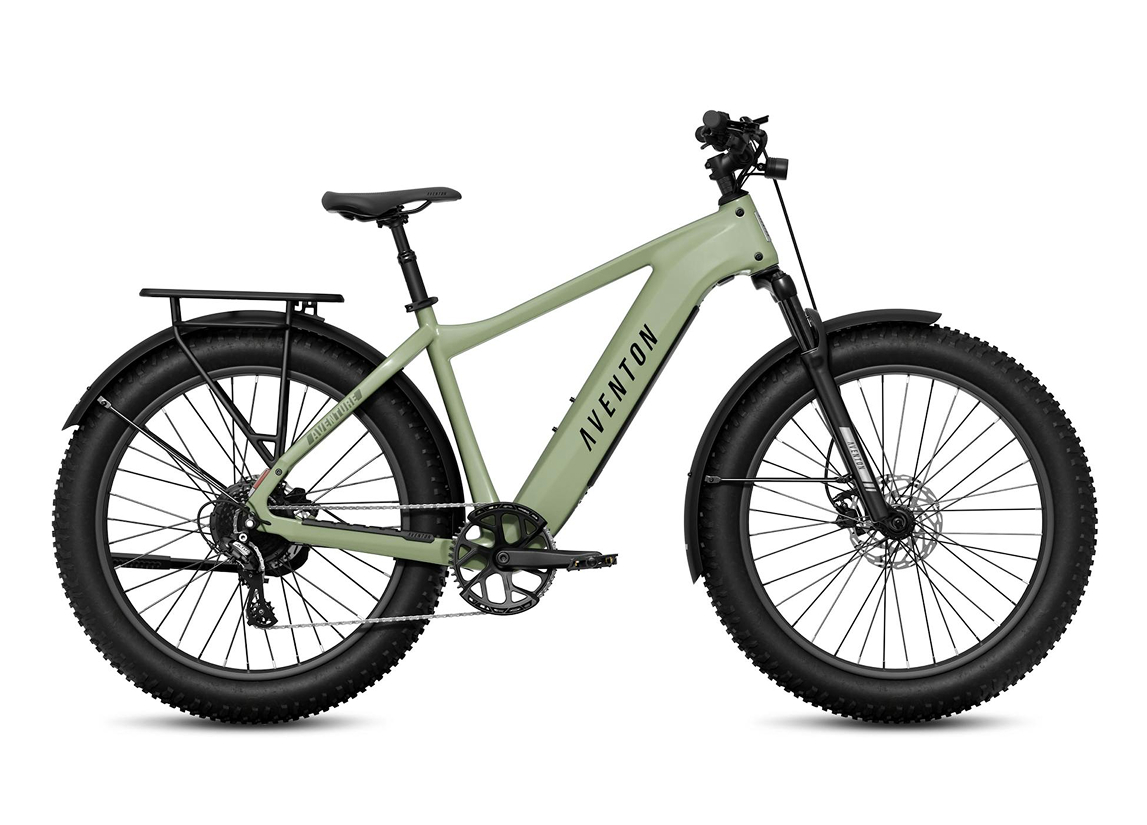

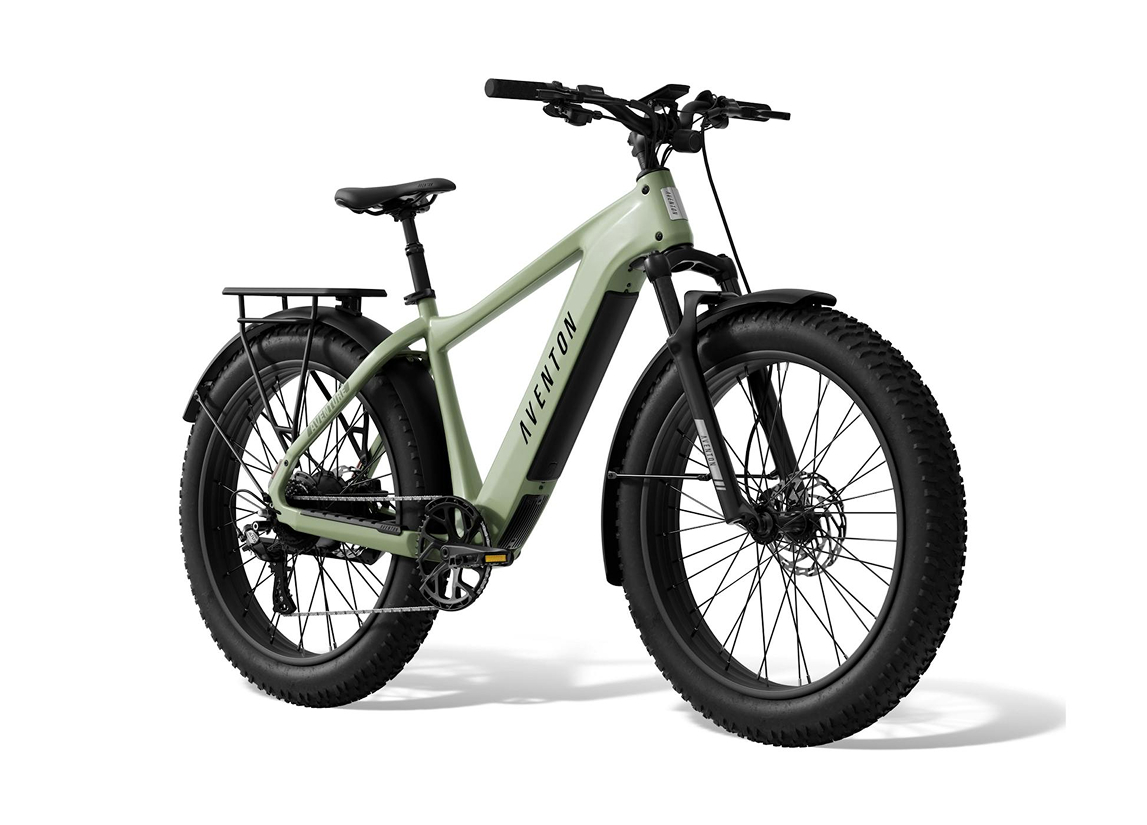

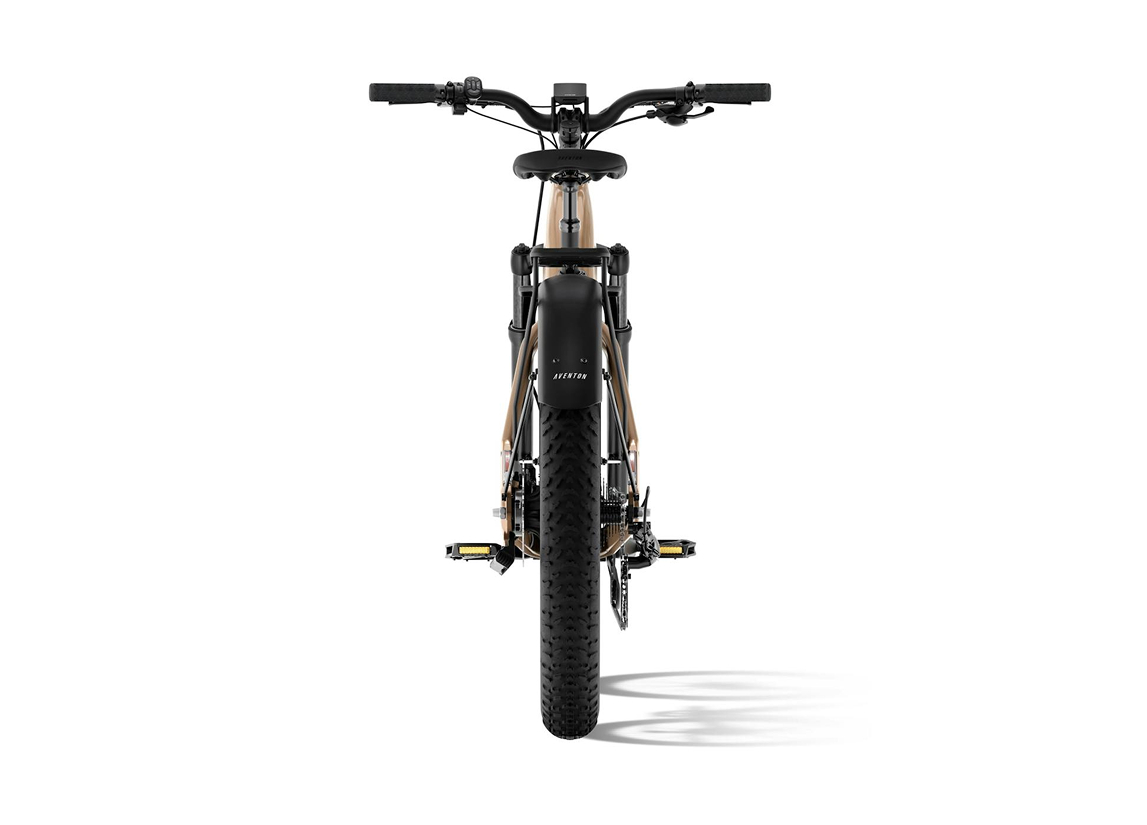

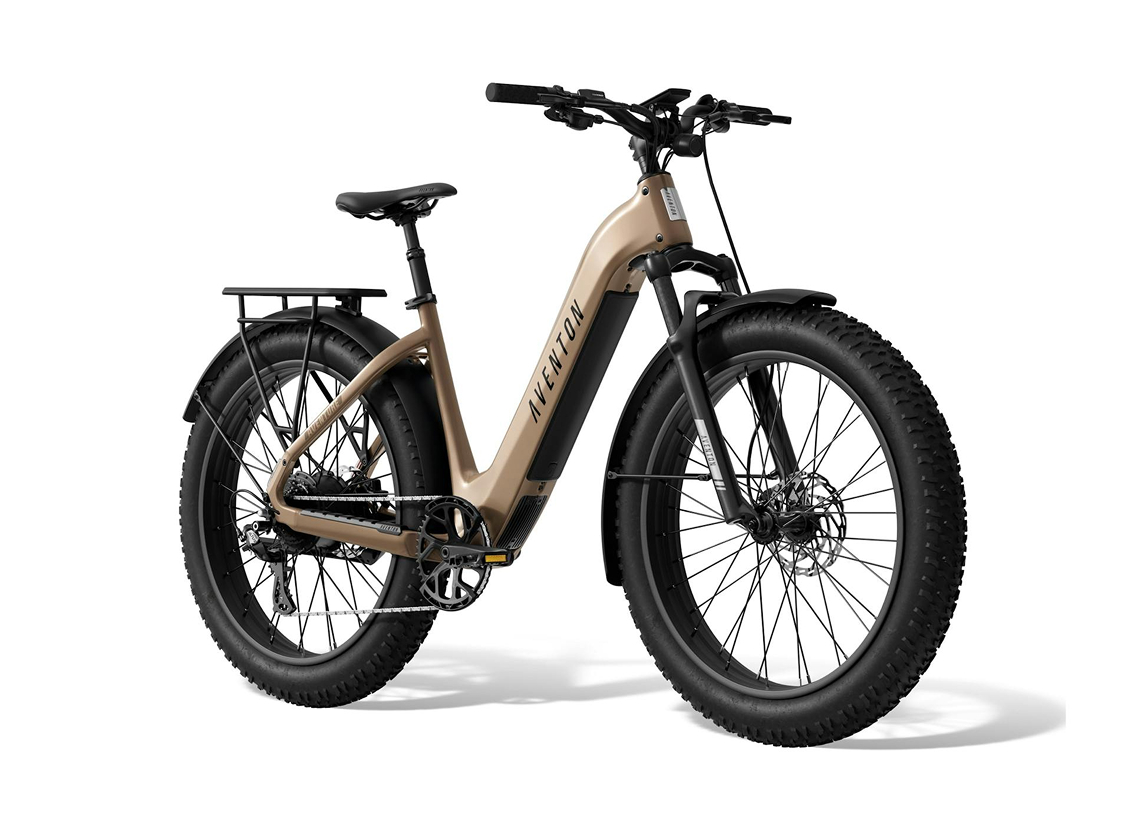

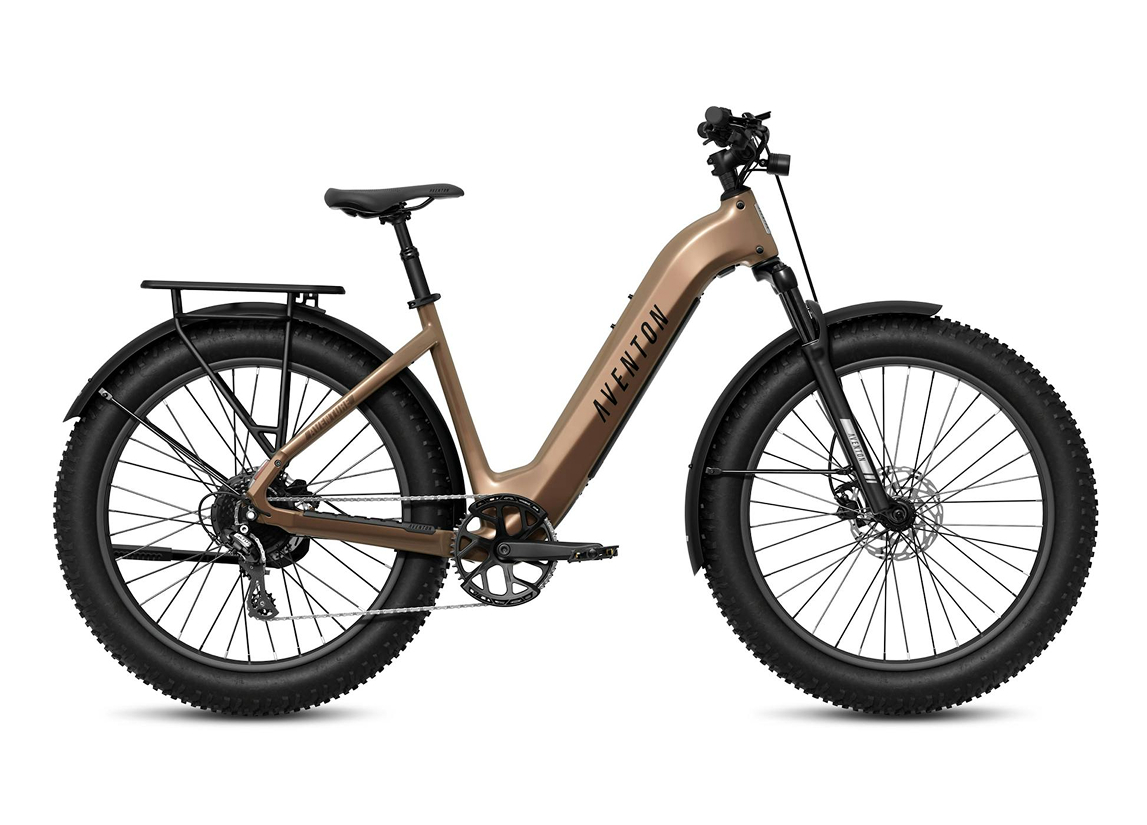

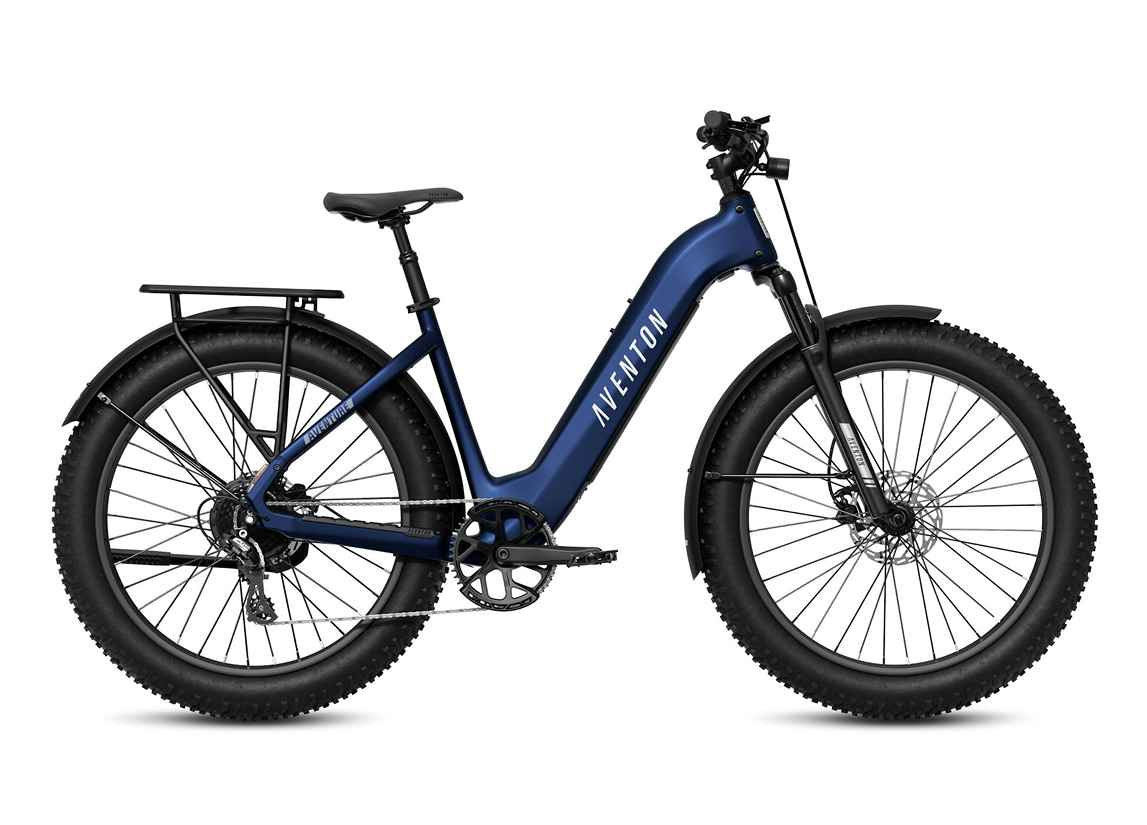

Aventon – Aventure 3 Ebike

Original price was: $1,999.00.Current price is: $1,799.00.

This e-bike is available through our official partner brand. Prices are subject to change depending on market conditions. Call us at 310-303-3189 for the latest quote.
Note: Local pickup is available; shipping is not available.

📦 Stock status: instock
🏷️ Brand: AVENTON

TOP SPEED

20+ mph

RANGE

UP-TO 65 miles

MOTOR POWER

750W Peak

PAYLOAD

400 lbs

FOLDABLE

Not Foldable

BRAND WARRANTY

2-year

Cruise Control

Cruise Control

Cruise Control lets you lock in your perfect pace with the push of a button. Whether you’re floating down country roads or open trails, it keeps your speed steady so you can focus on the ride—not the pedals.

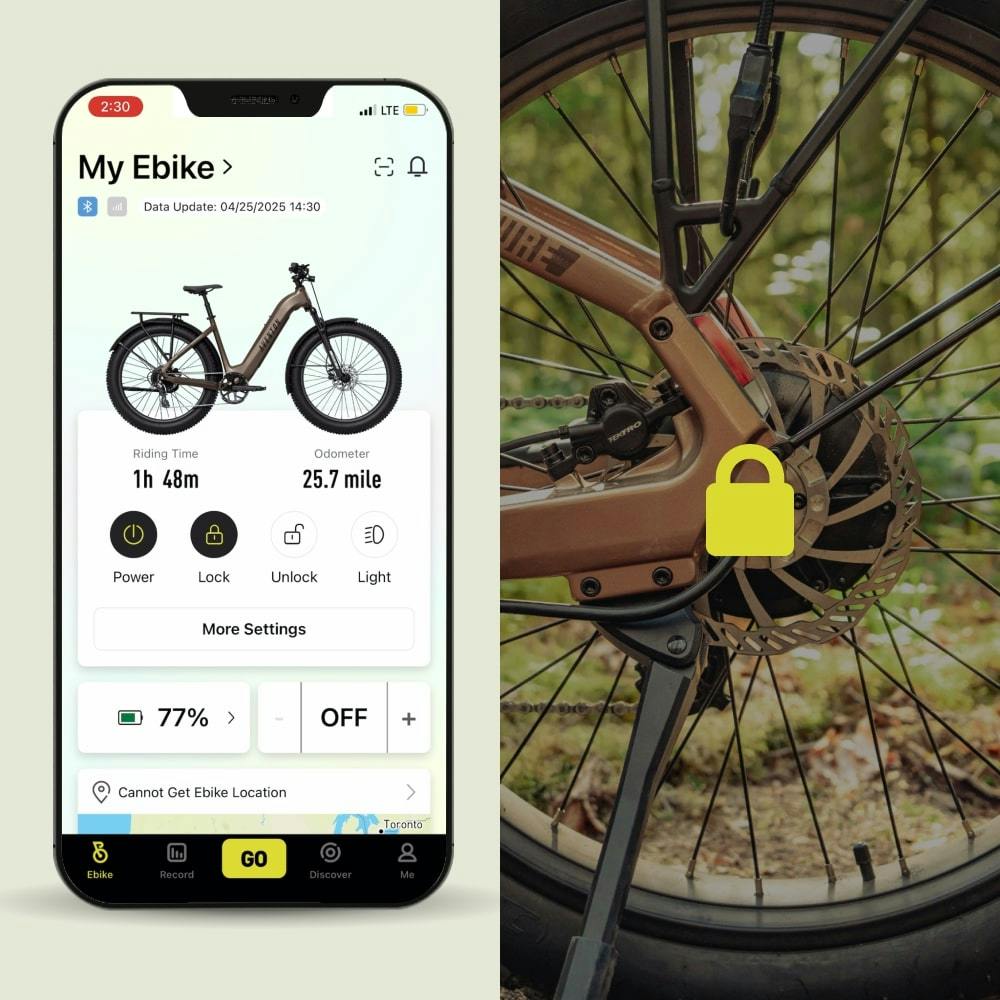

Integrated Rear Wheel Lock

Integrated Rear Wheel Lock

An integrated rear wheel lock adds an extra layer of security by immobilizing your bike when parked, preventing it from being easily rolled away. Controlled through the Aventon app or directly on the bike display, this lock deters theft and gives you peace of mind when leaving your bike unattended.

Sensor Switch

Sensor Switch

Like two bikes in one, choose between using a Torque or Cadence sensor with Sensor Switch. Whether you want to feel the power on the pedals or just cruise, Aventon’s Sensor Switch gives you the option to optimize your ride.

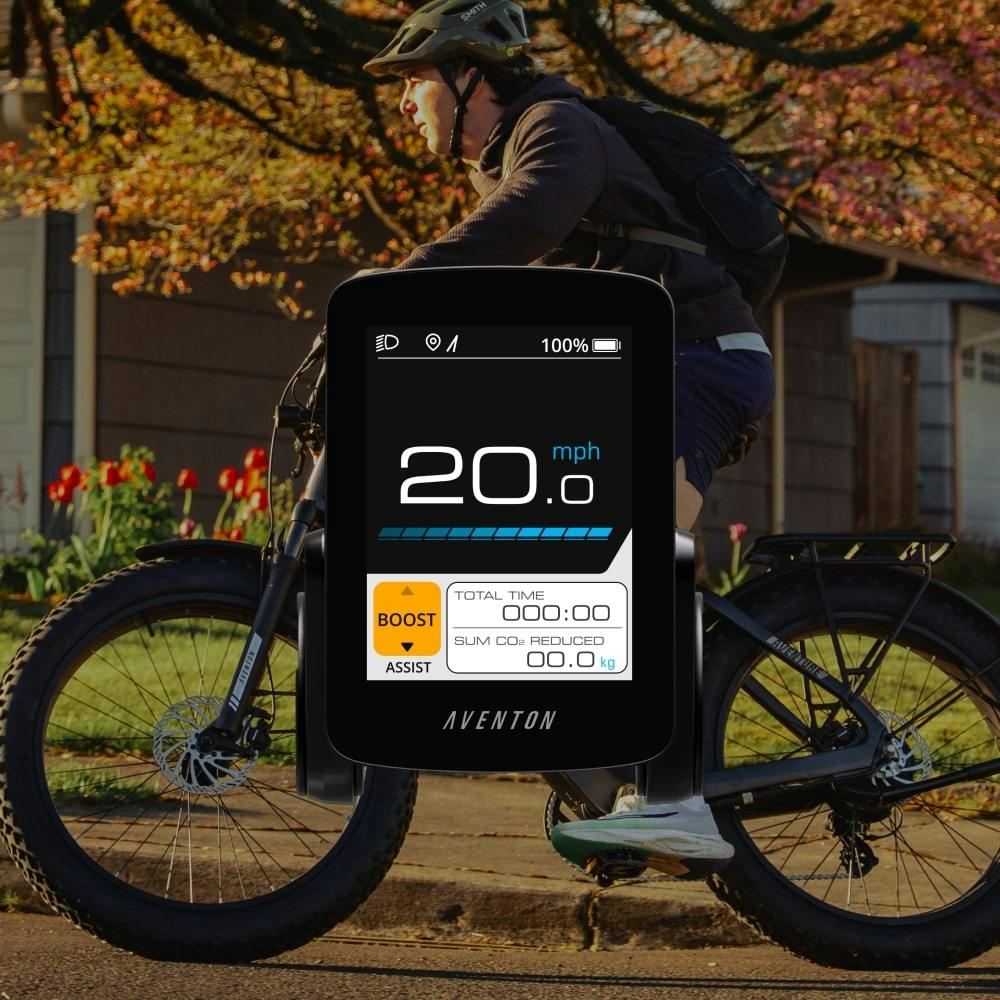

Boost Mode

Boost Mode

Available on all ACIU-equipped, hub-driven ebike models, Boost Mode allows the rider to access up to 120% of specified torque and peak power for up to 30 seconds at a time. It turns steep hills into shortcuts and handles heavy hauls hassle-free.

Geometry

Product Size Diagram
Frame Size Regular Large
A – Seat Tube Length 440mm (17″) (Step Over) / 400mm (15″) (Step Through) 500mm (19″) (Step Over) / 480mm (18″) (Step Through)
B – Top Tube Length Horizontal 605.5mm (23″) (Step Over) / 602.5mm (23″) (Step Through) 643.5mm (25″) (Step Over) / 640.5mm (25″) (Step Through)
C – Bottom Bracket Drop 65mm (2″) 65mm (2″)
D – Head Tube Length 140mm (5″) (Step Over) / 130mm (5″) (Step Through) 140mm (5″) (Step Over) / 130mm (5″) (Step Through)
E – Head Tube Angle 67° 67°
F – Seat Tube Angle 72° 72°
G – Rear Chainstay Length 470mm (18″) 470mm (18″)
H – Front Wheel Center 693.6mm (27″) (Step Over) / 689.8mm (27″) (Step Through) 731.5mm (28″) (Step Over) / 727.6mm (28″) (Step Through)
I – Wheelbase 1156.1mm (45″) (Step Over) / 1152.2mm (45″) (Step Through) 1194.1mm (47″) (Step Over) / 1190.2mm (46″) (Step Through)
J – Reach 390mm (15″) 428mm (16″)
K – Stack Height 663.1mm (26″) (Step Over) / 653.9mm (25″) (Step Through) 663.1mm (26″) (Step Over) / 653.9mm (25″) (Step Through)
L – Fork Length 525mm (20″) 525mm (20″)
M – Fork Offset 43mm (1″) 43mm (1″)
N – Trail 102.5mm (4″) 102.5mm (4″)
Wheel Size in Inches 26″ x 4.0″ 26″ x 4.0″
Rider Height (Range) 160cm – 175cm (5’3″ – 5’10”) (Step Over) / 150cm – 170cm (4’11” – 5’7″) (Step Through) 175cm – 195cm (5’10” – 6’4″) (Step Over) / 170cm – 185cm (5’7″ – 6’1″) (Step Through)

Specs & Details

General Info
Model Step-Over: Aventure 3 Ebike
Step-Through: Aventure 3 Step Through Ebike
Weight Step-Over: 76 lbs
Step-Through: 77 lbs
Total Weight Limit 400 lbs
Rider Height Step-Over: R: 5’3″ – 5’10” | L: 5’10” – 6’4″
Step-Through: R: 4’11” – 5’7″ | L: 5’7″ – 6’1″
Ebike Class Class 2 Ebike
Range Up to 65 miles
Battery Safety Certifications Certified to UL 2271
Ideal Use All-Terrain
Bike Safety Certifications UL Safety Certified, UL 2849
Water Resistance Bike – IPX5 // Components – IPX6
Frameset
Frame 6061 Aluminum, Gravity Cast Front Triangle
Fork Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing 190mm
Fork Spacing 135mm
Frame Style Step-Over / Step-Through (depending on model)
Wheelset
Front Wheel 26″, 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
Rear Wheel 26″, 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve

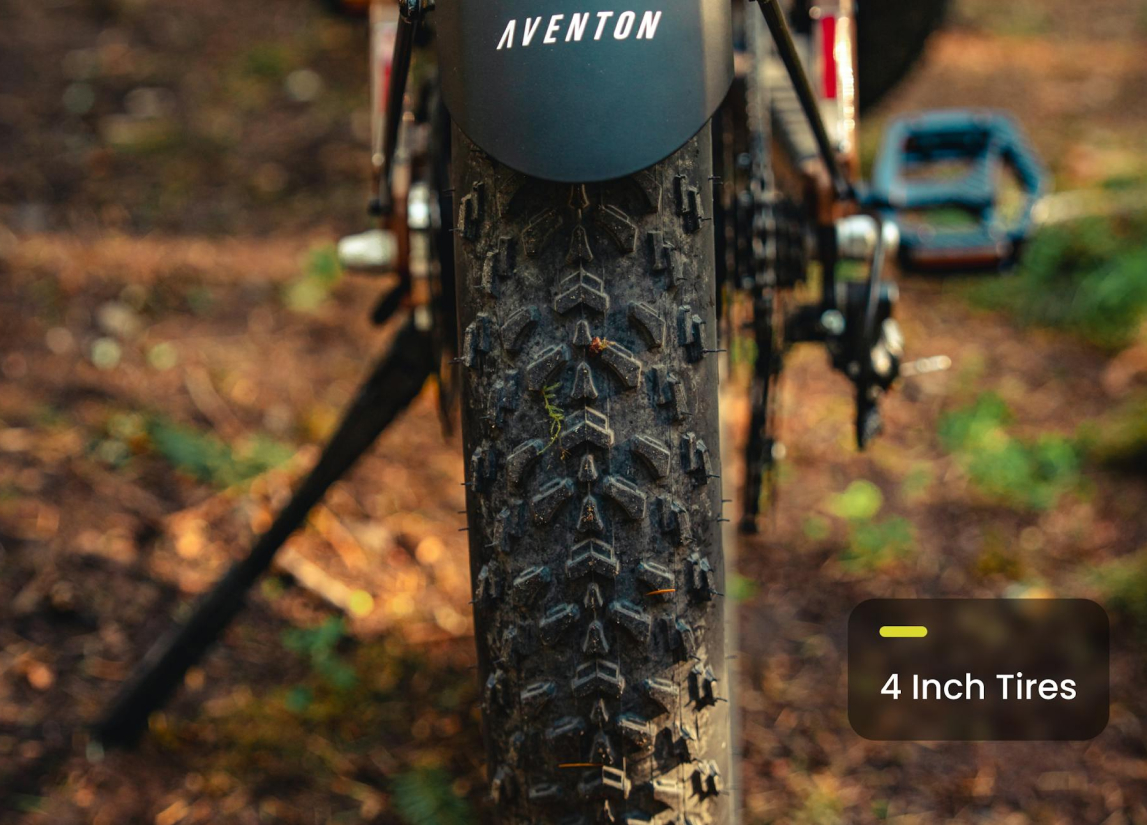

Tires Inova 26×4.0 puncture resistant
Ebike System
Speed Class 2

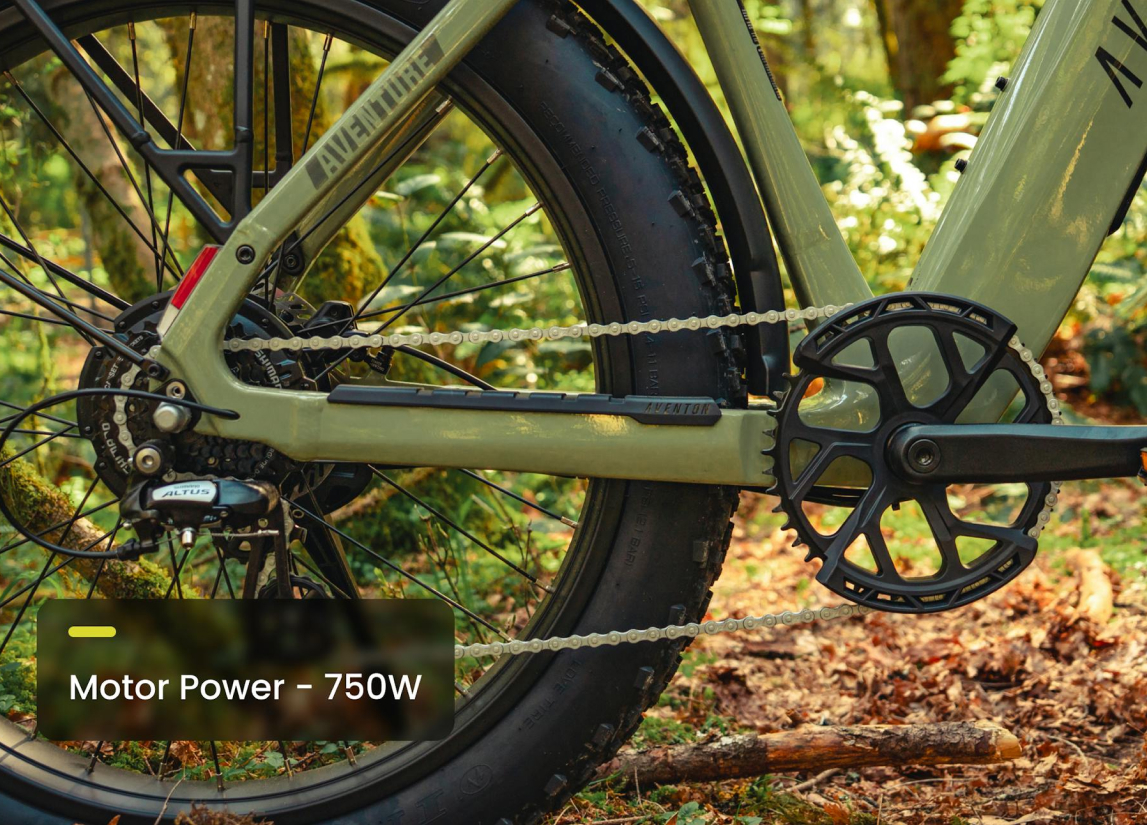

Motor 36V, 750W Hub Drive
Motor Torque 80Nm
Motor Power 750W (1188 Peak)
Display Aventon BC280
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight 8.7lbs
Controller 36V/33A
Throttle Aventon LH Handlebar Mounted
Sensors Double Sided Bottom Bracket Torque Sensor
Charger 36V Output: 42V/ 4A
Charging Time (0% to 100%) 5 hours
Lights Front and rear lights integrated
Brakes
Front Brake Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor Tektro 180mm 6 bolt
Rear Brake Rotor Tektro 180mm 6 bolt
Drivetrain
Rear Derailleur Shimano Altus 8-Speed
Shifter Shimano 8-Speed Trigger
Chain 7/8 Speed 118L
Cassette 12-32T / 8 Speed Shimano CS HG200-8
Chainring 48T
Chainring BCD N/A
Crankset 3pc, 170mm crank arm
Bottom Bracket 100×177 Square Taper, Double Sided Torque sensor bottom bracket
Pedals 9/16″ Alloy Platform
Cockpit
Saddle Aventon Saddle

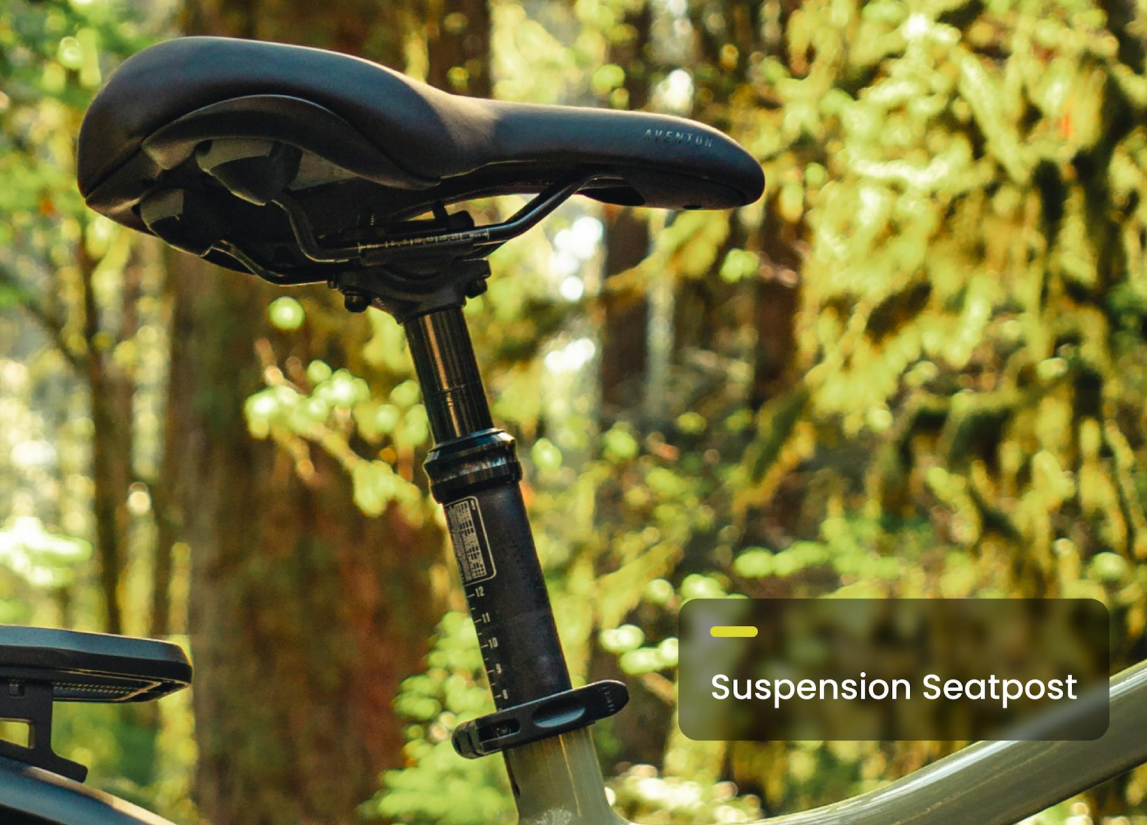

Seatpost Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp 34.9mm
Handlebars Aluminum 31.8mm, 680mm
Grips Aventon Lock on grips
Headset Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Included Accessories
Kickstand Included, rear mount
Rear Rack Included
Fenders Included
