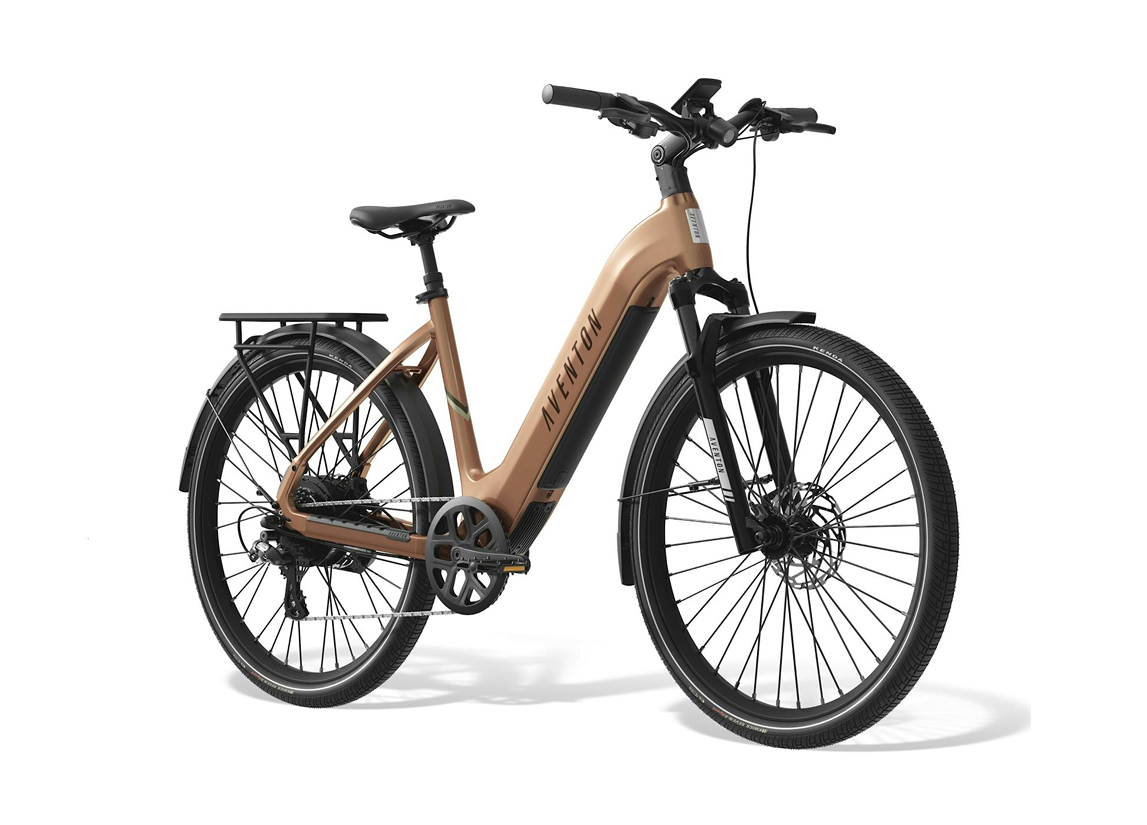

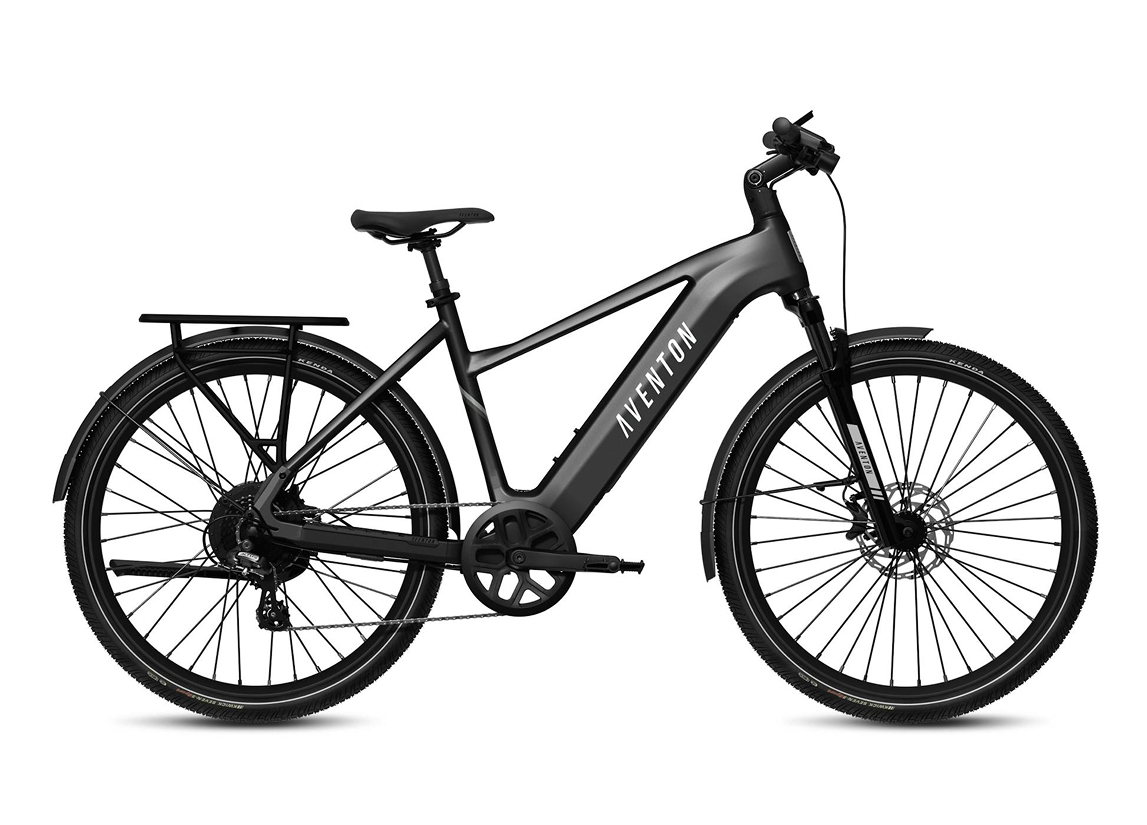

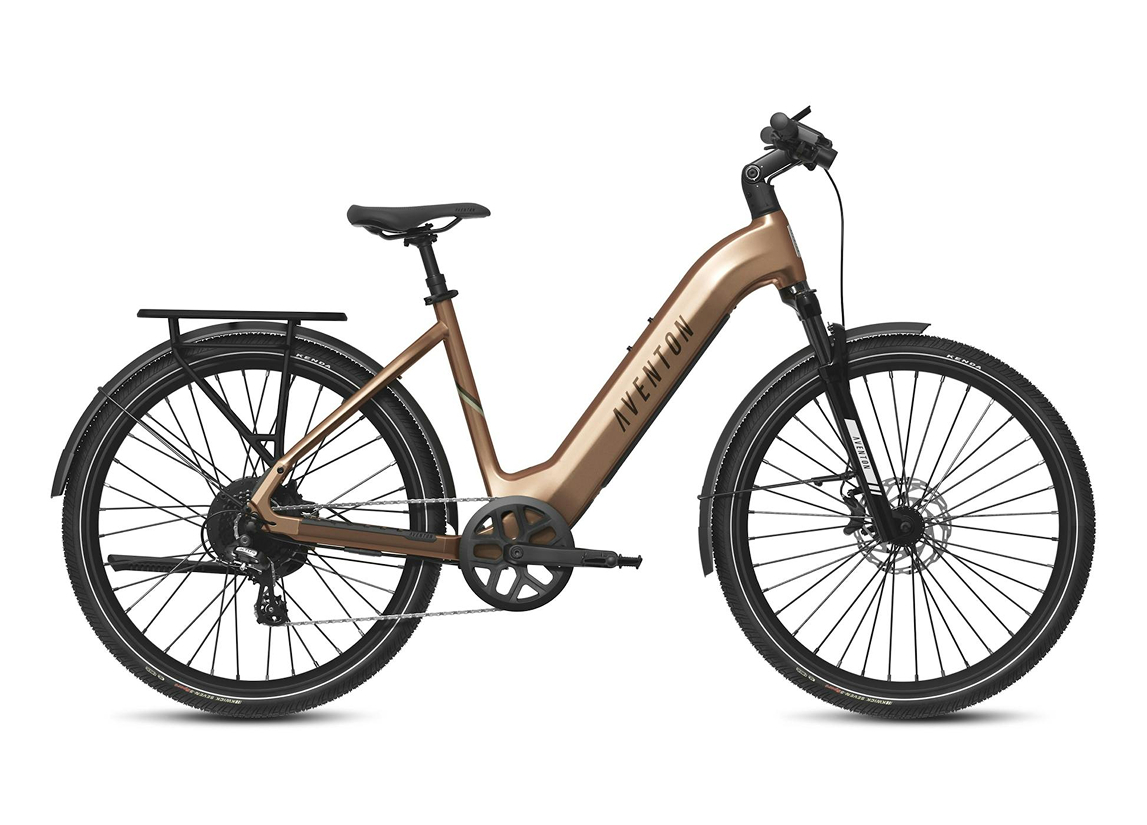

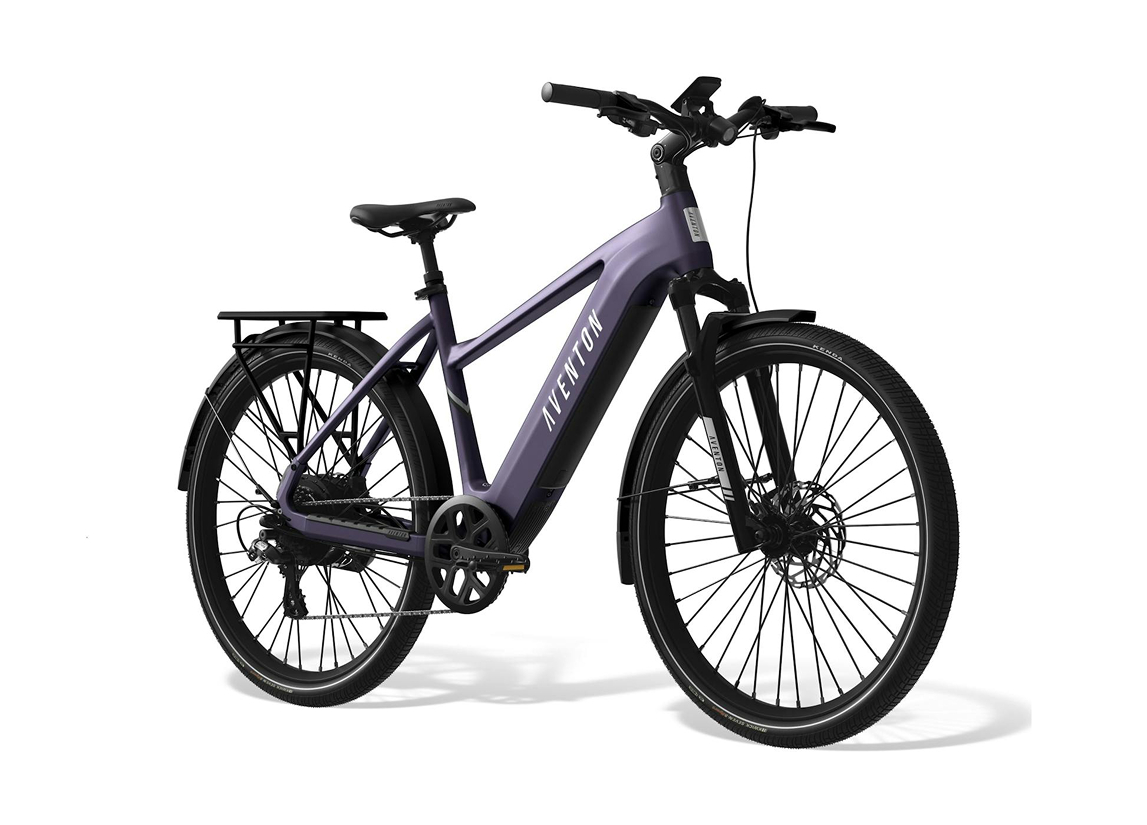

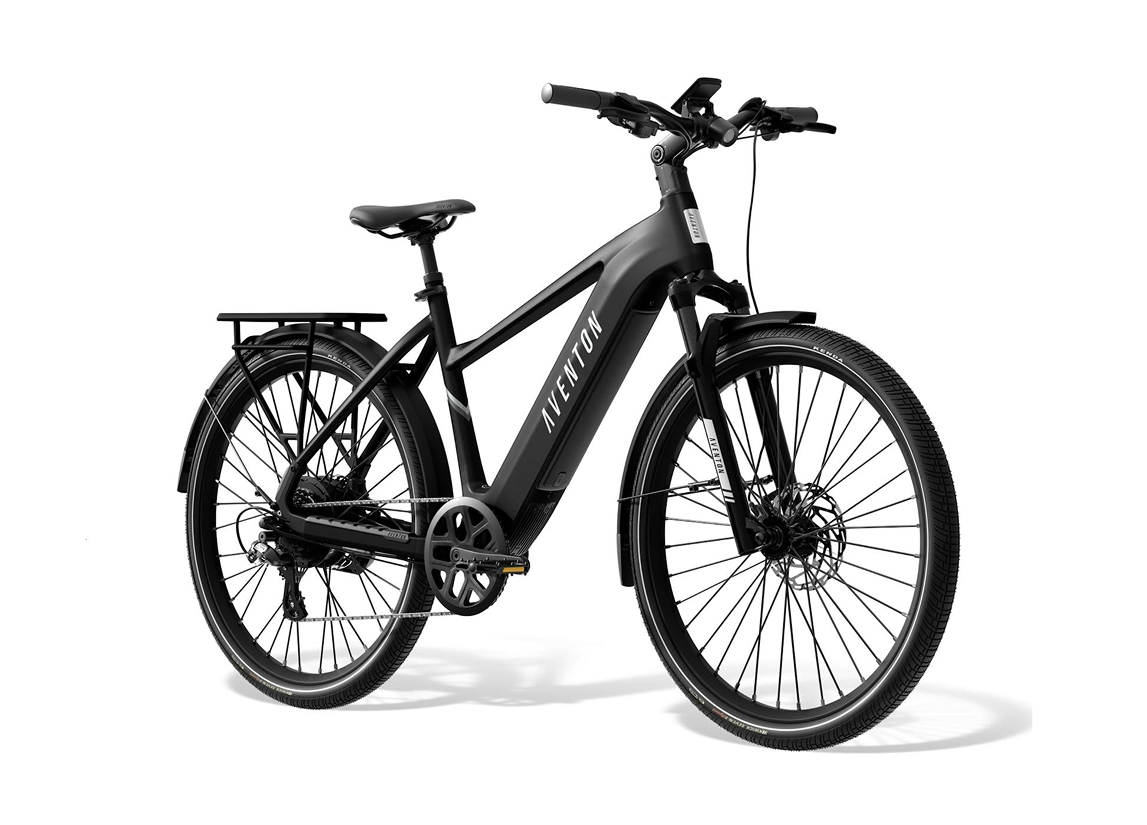

Aventon – Level 3 Ebike

Original price was: $1,899.00.Current price is: $1,699.00.

This e-bike is available through our official partner brand. Prices are subject to change depending on market conditions. Call us at 310-303-3189 for the latest quote.
Note: Local pickup is available; shipping is not available.

📦 Stock status: instock
🏷️ Brand: AVENTON

TOP SPEED

20+ mph

RANGE

UP-TO 70 miles

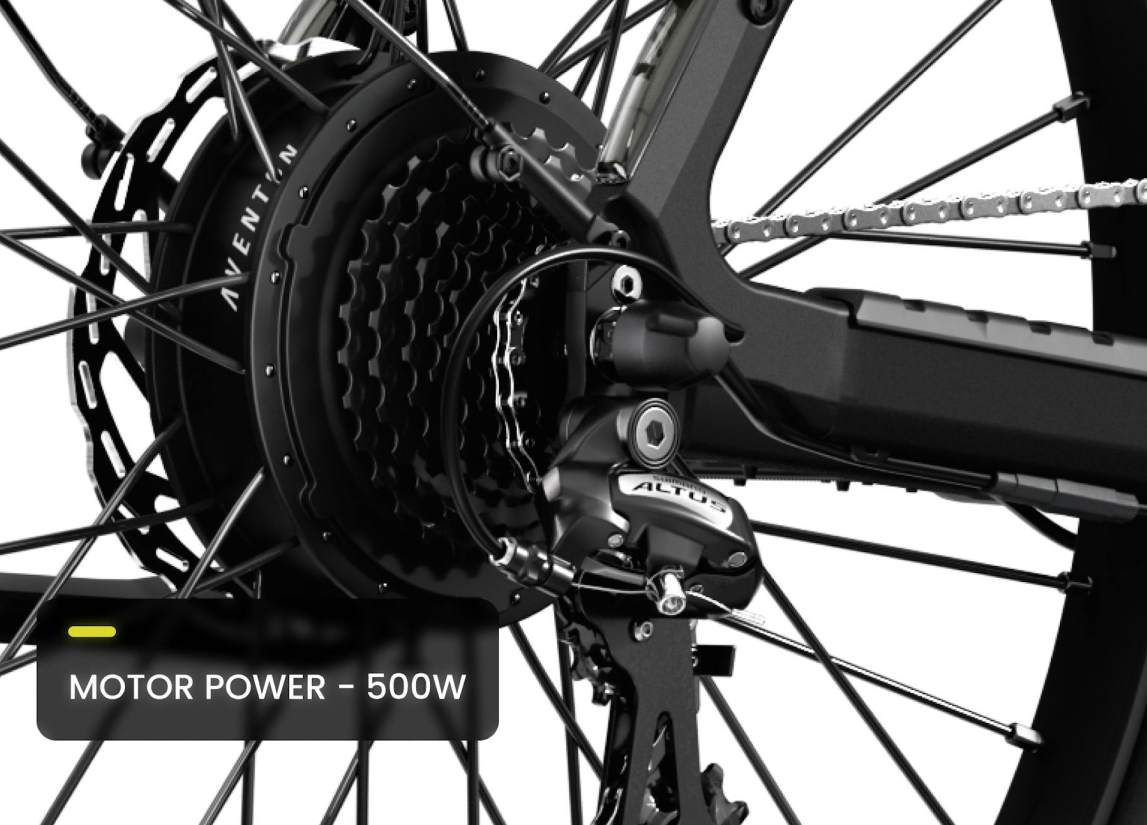

MOTOR POWER

500 W

PAYLOAD

300 lbs

FOLDABLE

Not Foldable

BRAND WARRANTY

2-year

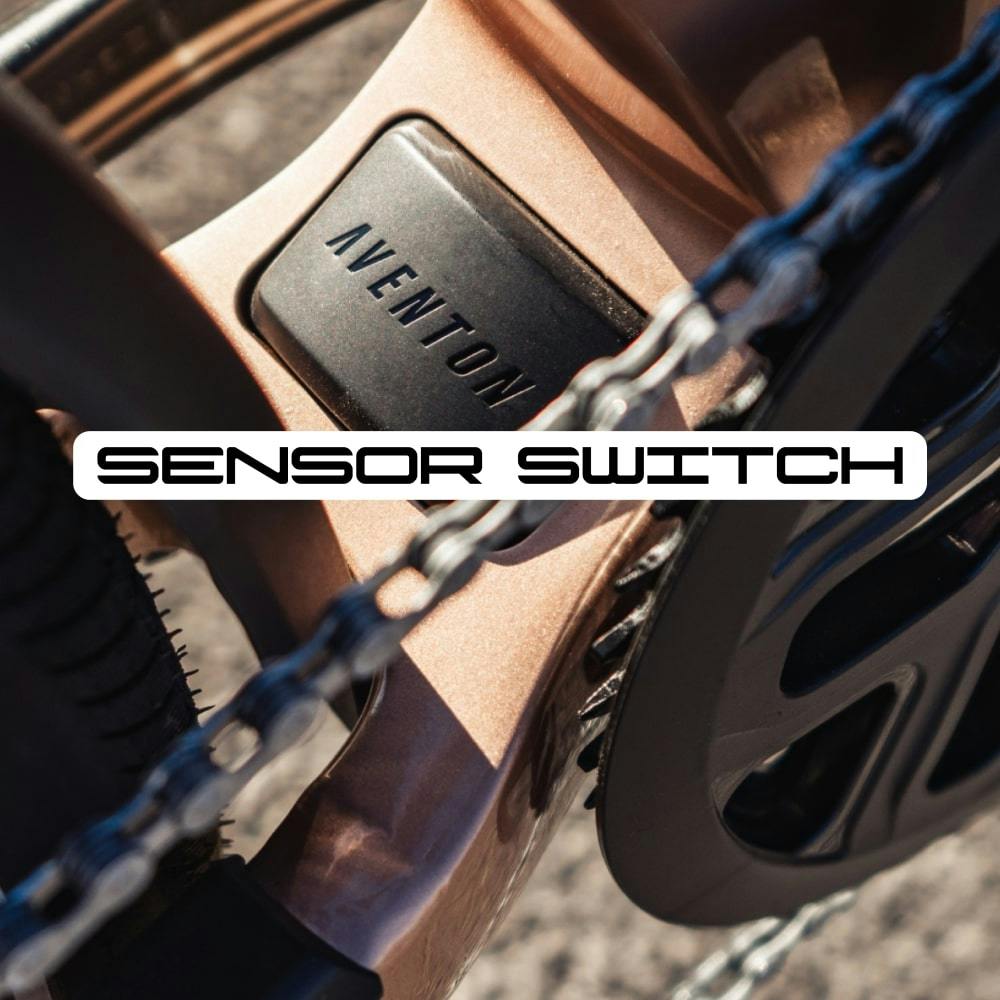

Sensor Switch

Sensor Switch

Like two bikes in one, choose between using a Torque or Cadence sensor with Sensor Switch. Whether you want to feel the power on the pedals or just cruise, Aventon’s Sensor Switch gives you the option to optimize your ride.

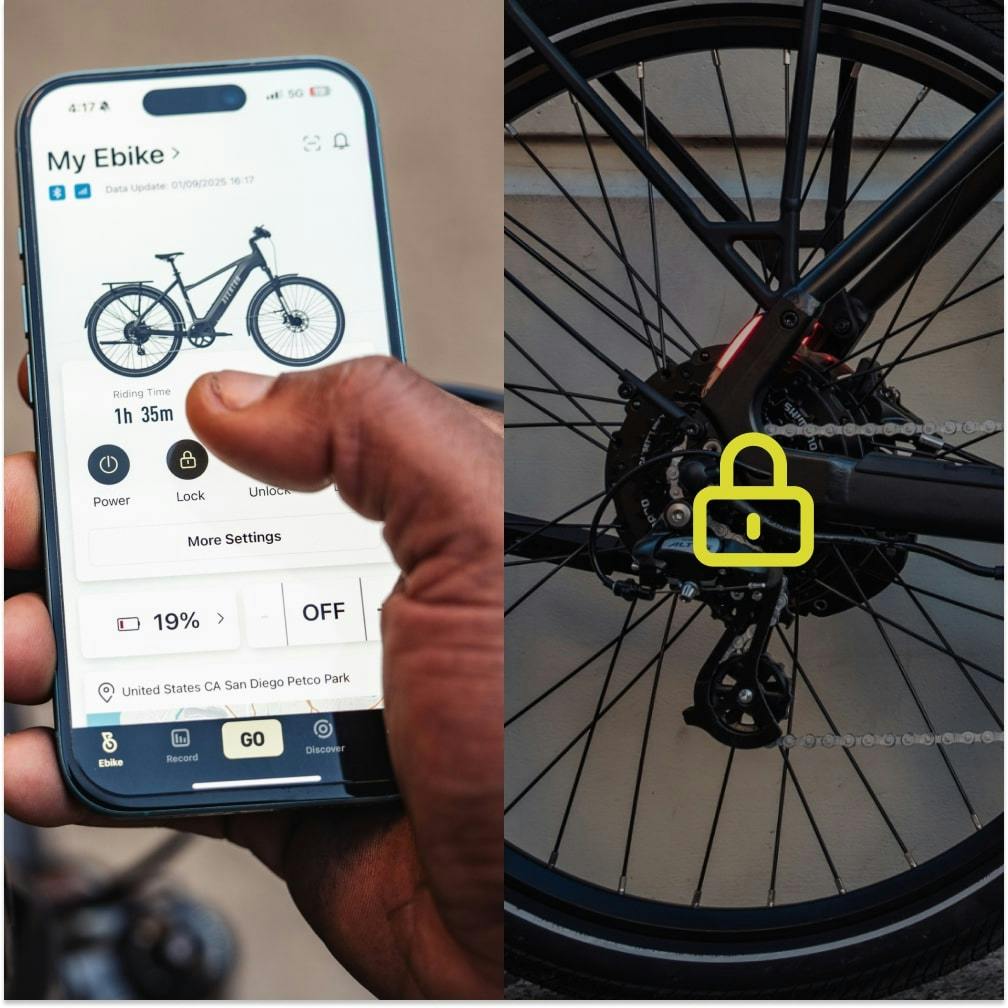

Integrated Rear Wheel Lock

Integrated Rear Wheel Lock

An integrated rear wheel lock adds an extra layer of security by immobilizing your bike when parked, preventing it from being easily rolled away. Controlled through the Aventon app or directly on the bike display, this lock deters theft and gives you peace of mind when leaving your bike unattended.

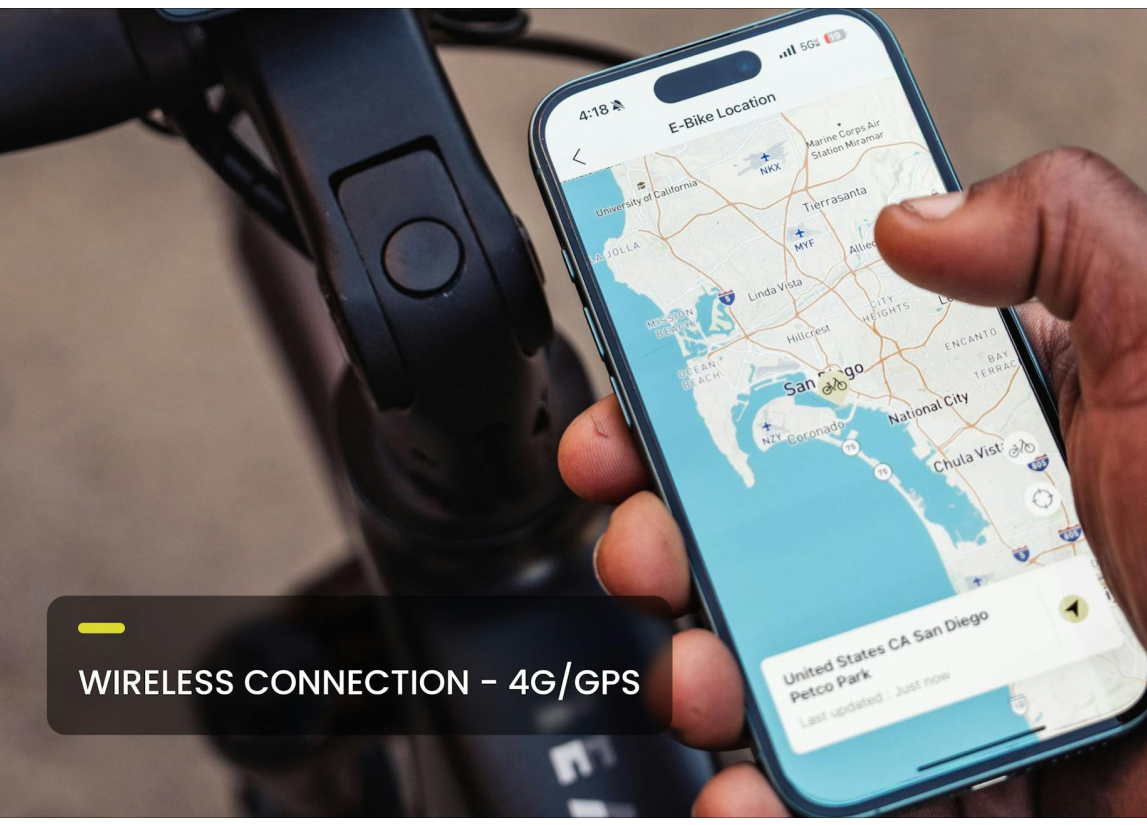

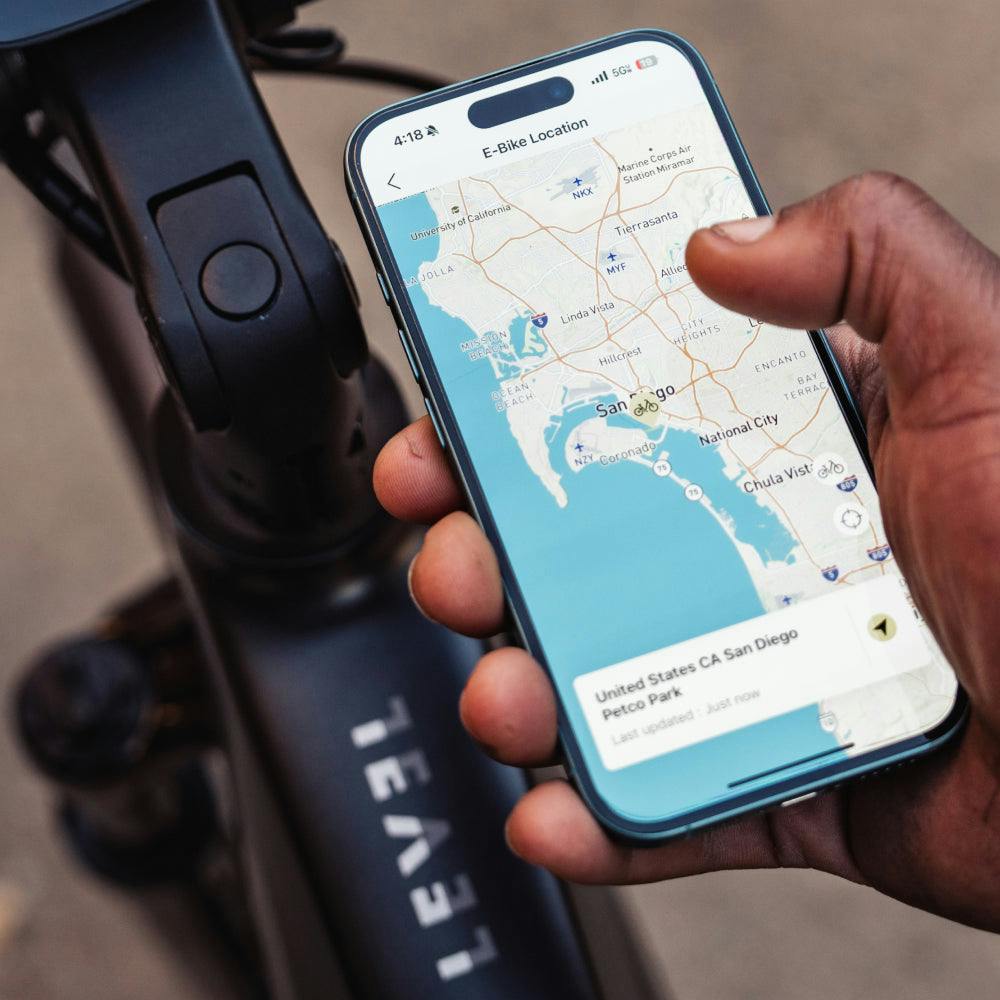

GPS Tracking

GPS Tracking

With built-in GPS, you can easily track your bike’s location through the Aventon app, and even receive alerts if it’s moved unexpectedly.

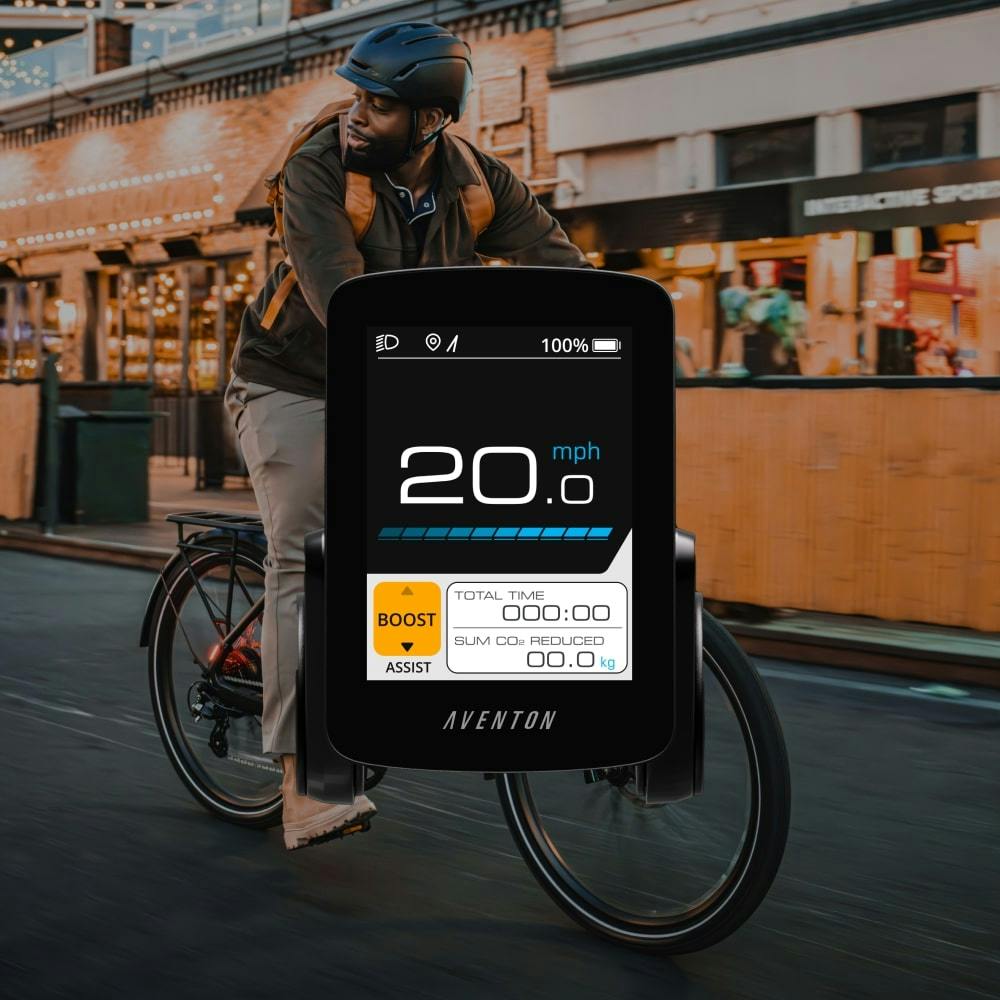

Boost Mode

Boost Mode

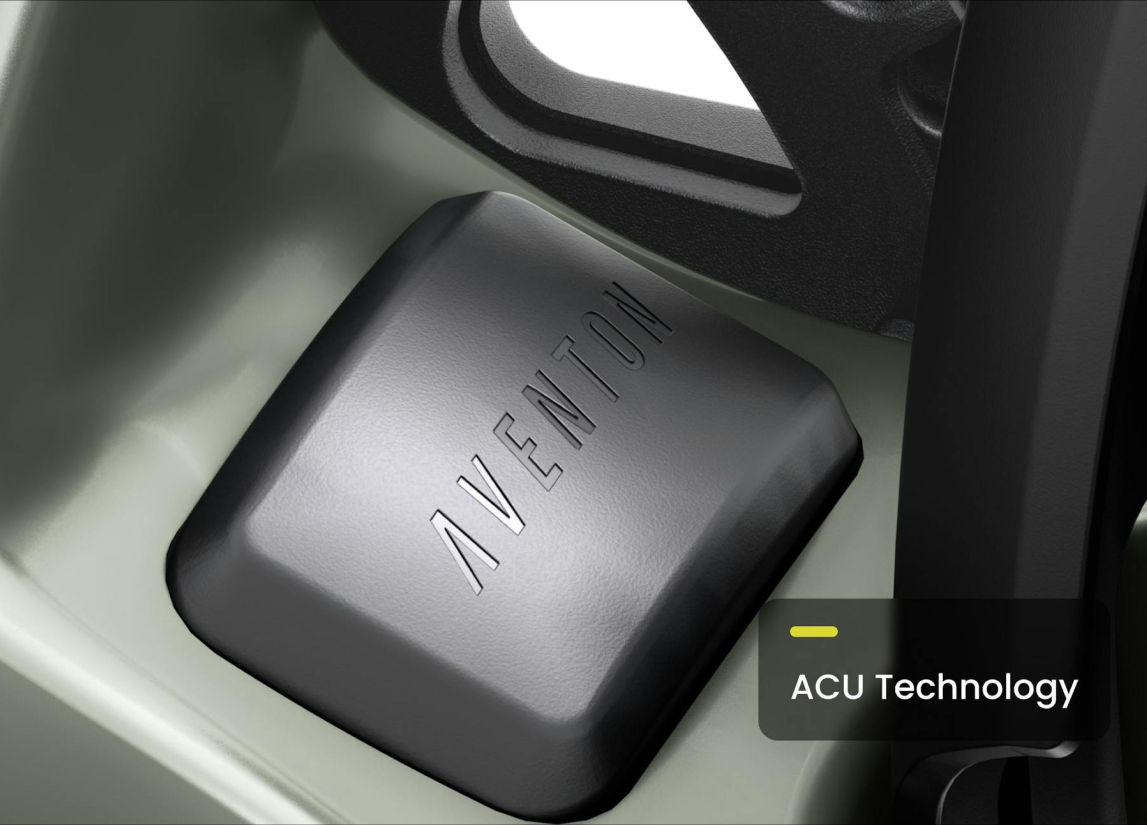

Available on all ACU-equipped, hub-driven ebike models, Boost Mode allows the rider to access up to 120% of specified torque and peak power for up to 30 seconds at a time. It turns steep hills into shortcuts and handles heavy hauls hassle-free.

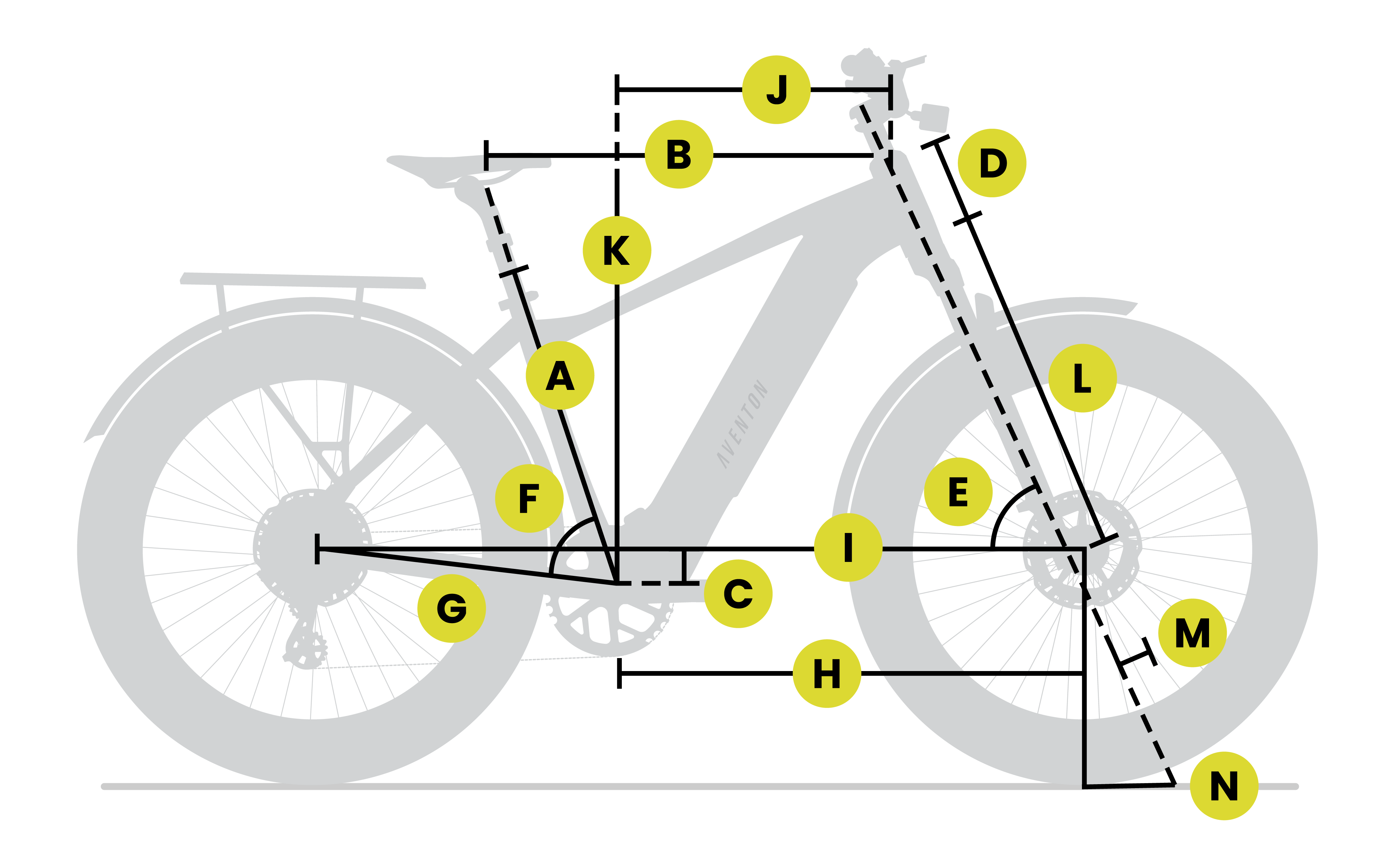

Geometry

Product Size Diagram
Frame Size Regular Large
A – Seat Tube Length 440mm (17″) (Step Over) / 400mm (15″) (Step Through) 500mm (19″) (Step Over) / 480mm (18″) (Step Through)
B – Top Tube Length Horizontal 605mm (23″) (Step Over) / 607mm (23″) (Step Through) 635mm (25″) (Step Over) / 634mm (25″) (Step Through)
C – Bottom Bracket Drop 50mm (2″) 50mm (2″)
D – Head Tube Length 140mm (5″) (Step Over) / 130mm (5″) (Step Through) 140mm (5″) (Step Over) / 130mm (5″) (Step Through)
E – Head Tube Angle 70° 70°
F – Seat Tube Angle 74° 74°
G – Rear Chainstay Length 480mm (18″) 480mm (18″)
H – Front Wheel Center 675mm (26″) 705mm (27″) (Step Over) / 701mm (27″) (Step Through)
I – Wheelbase 1150mm (45″) 1180.7mm (46″) (Step Over) / 1176.8mm (46″) (Step Through)
J – Reach 420mm (16″) (Step Over) / 423mm (16″) (Step Through) 450mm (17″)
K – Stack Height 620mm (24″) (Step Over) / 610mm (24″) (Step Through) 618mm (24″) (Step Over) / 610mm (24″) (Step Through)
L – Fork Length 480mm (18″) 480mm (18″)
M – Fork Offset 43mm (1″) 43mm (1″)
N – Trail 81mm (3″) 81mm (3″)
Wheel Size in Inches 27.5″ 27.5″
Stand Over Height 687mm (27″) (Step Over) / 442mm (17″) (Step Through) 695mm (27″) (Step Over) / 442mm (17″) (Step Through)
Rider Height (Range) 160cm – 175cm (5’3″ – 5’10”) (Step Over) / 150cm – 170cm (4’11” – 5’7″) (Step Through) 175cm – 195cm (5’10” – 6’4″) (Step Over) / 170cm – 185cm (5’7″ – 6’1″) (Step Through)

Specs & Details

General Info
Model Level 3 Ebike
Weight 67 lbs
Total Weight Limit 300 lbs
Box Size 61″ x 13″ x 34″
Rider Height 5’3″ – 6’4″
Ebike Class Class 2 Ebike
Range Up to 70 Miles
Battery Safety Certifications Certified to UL 2271
Safety Certifications UL Safety Certified, UL 2849
Ideal Use Commuting
Pedal Assist 3 Levels (with Ride Tune Customization)
Water Resistance Bike – IPX5 // Components – IPX6
Frameset
Frame 6061 Aluminum, Gravity Cast Front Triangle
Fork Aventon Suspension Fork, 80mm travel, w/ lockout, coil spring, 15x100mm thru-axle, 43mm offset
Rear Spacing 142mm
Fork Spacing 110mm

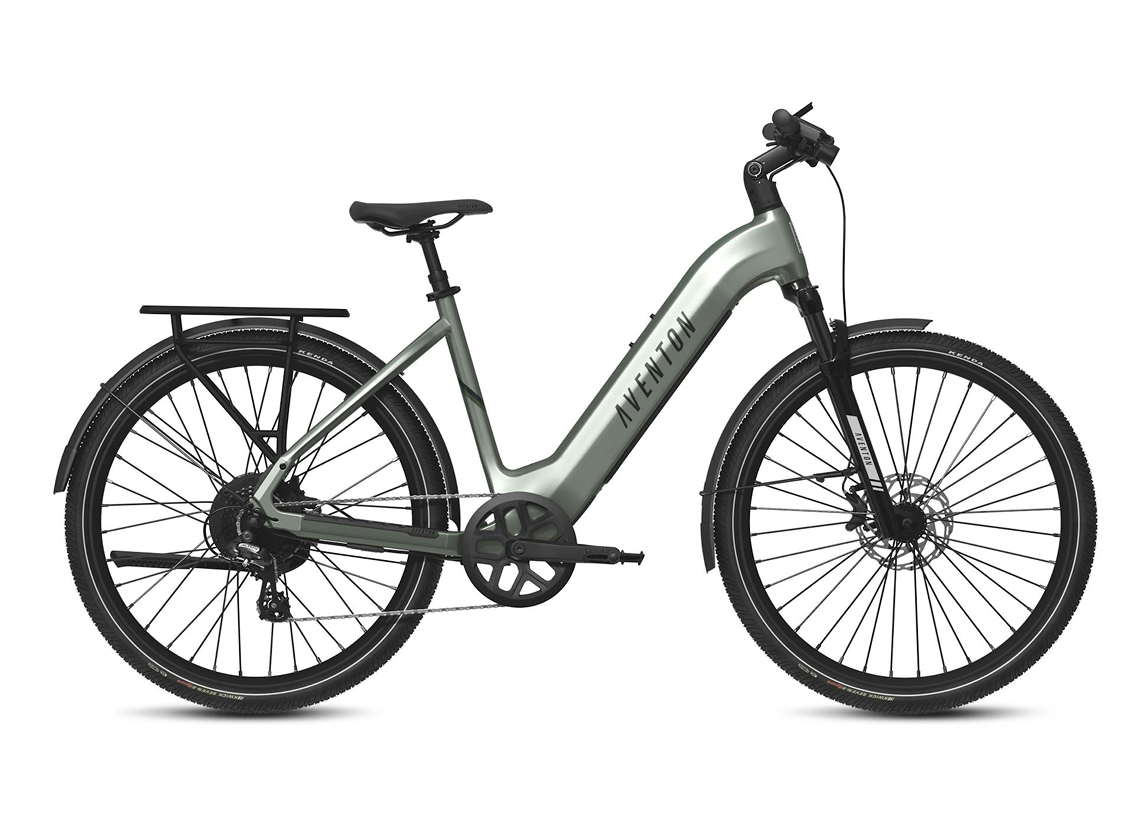

Frame Style Step-Over
Wheelset
Front Wheel 27.5in, 13g, 36h, double wall Aluminum, thru axle, Schrader Valve, black
Rear Wheel 27.5in, 12g, 36h, double wall Aluminum, nutted hub drive motor, Schrader Valve, black
Tires Kenda Kwick Seven-5 Sport K1052-006, 27.5 x 2.20
Ebike System
Motor 36V, 500W (sustained), 864W (peak)
Motor Torque 60Nm
Display Aventon BC280
Battery Removable Internal Lithium-ion, 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight 8.7 lbs
Controller 36V, 24A

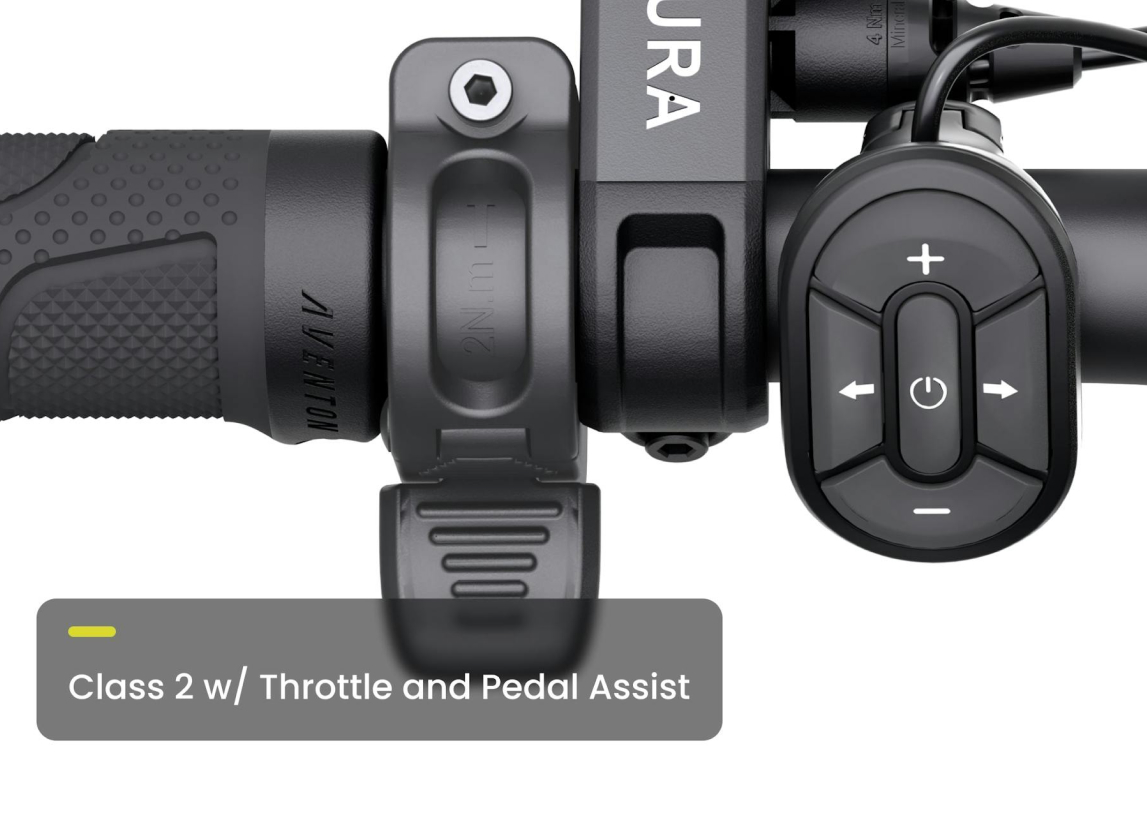

Throttle Aventon LH Handlebar Mounted
Sensors Double Sided Bottom Bracket Torque Sensor
Charger 36V Output: 42V / 4A
Charging Time 5 hours (0% to 100%)
Lights Front and rear lights integrated
Speed Class 2
Brakes
Front Brake Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Rear Brake Rotor Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur Shimano Altus RD-M310
Shifter Shimano 8 Speed Trigger SL-M315-8R
Chain 7/8 speed 120L
Cassette 12-32T / 8 Speed Shimano CS HG200-8
Chainring 48T
Crankset 3pc, 170mm crank arm
Bottom Bracket Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals 9/16″ Composite Platform
Cockpit
Saddle Aventon Saddle
Seatpost 30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp 34.9mm
Handlebars Aluminum 31.8mm, 680mm
Grips Aventon Lock on grips
Headset Sealed Bearing Headset
Included Accessories
Fenders Included
Rear Rack Included
Rear Rack Weight Limit 60 lbs
