California Cruising, Electric Thinking

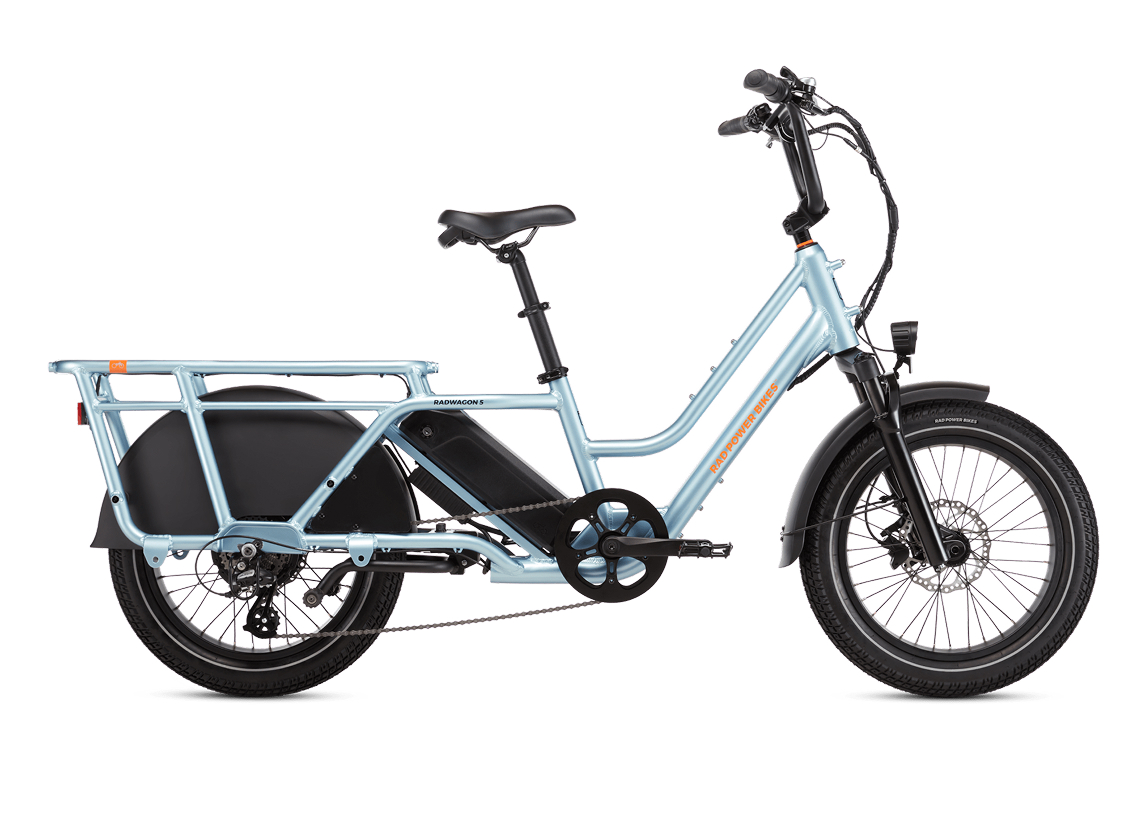

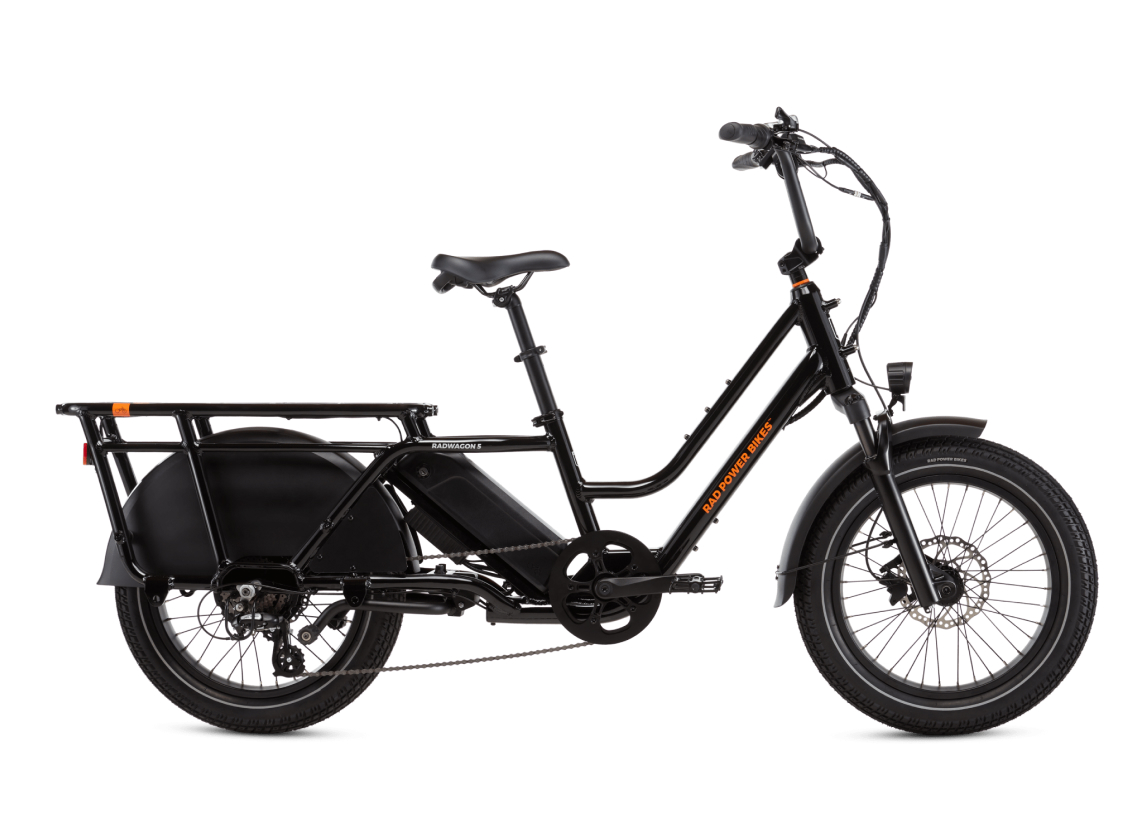

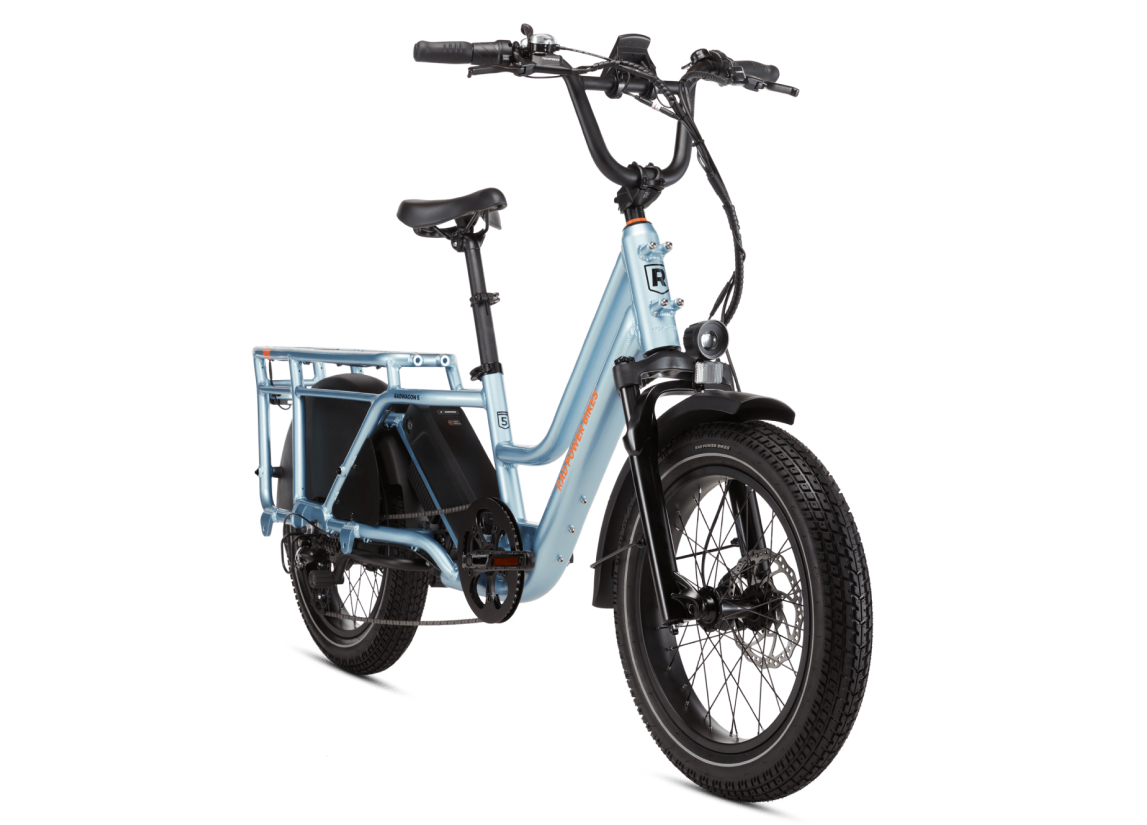

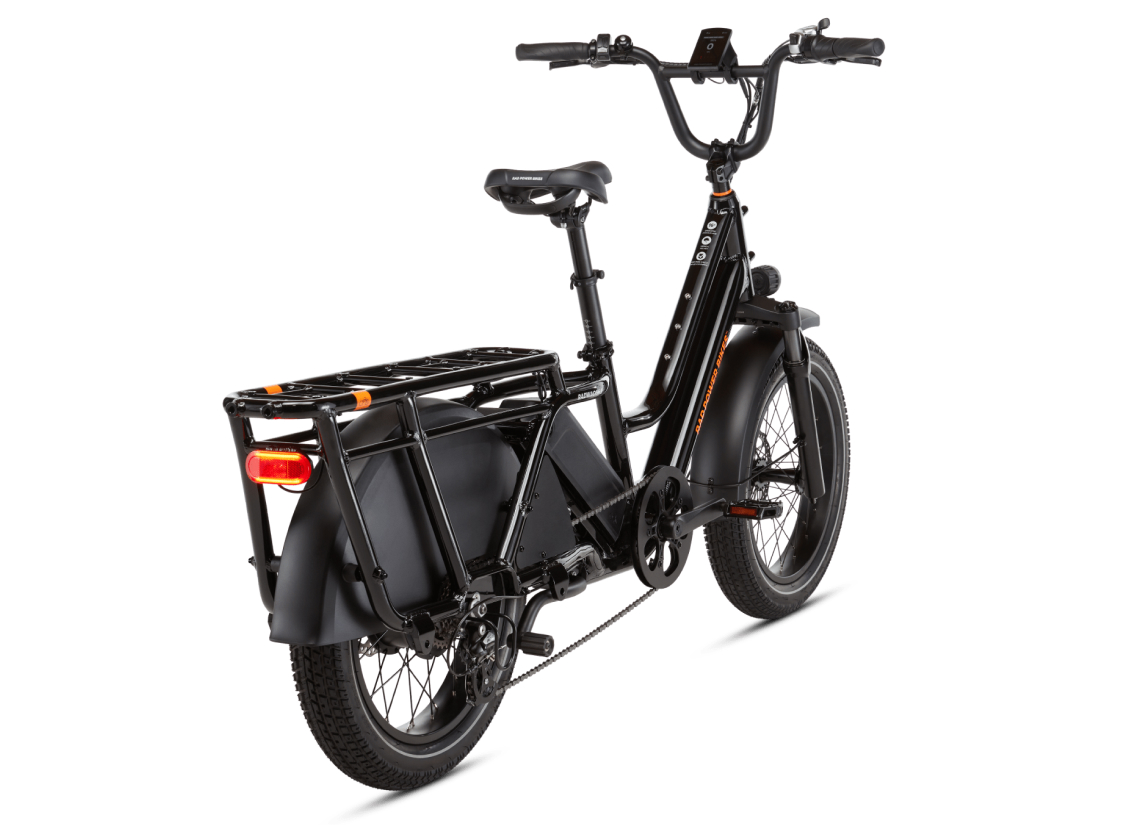

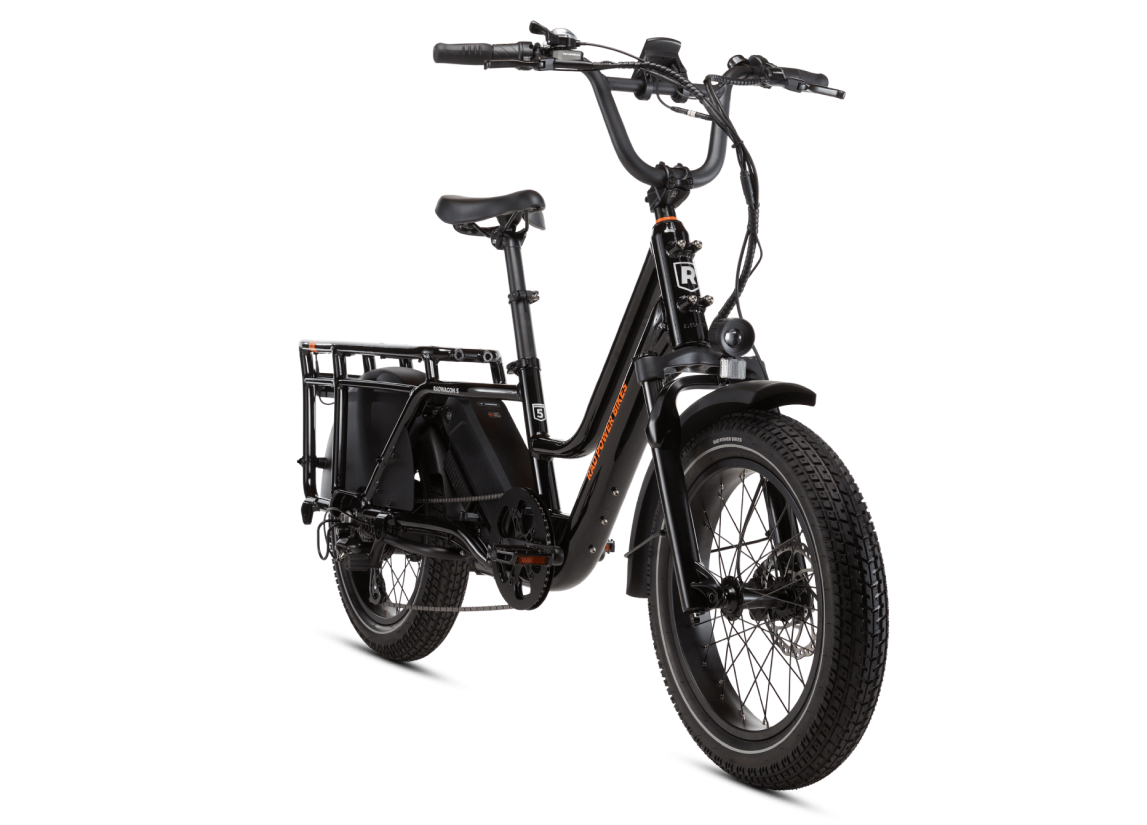

RadWagon™ 5 Electric Cargo Bike

$2,399.00

This e-bike is available through our official partner brand. Prices are subject to change depending on market conditions. Call us at 310-303-3189 for the latest quote.
Note: Local pickup is available; shipping is not available.

📦 Stock status: instock
🏷️ Brand: RAD POWER BIKE

TOP SPEED

28 mph

RANGE

60+ miles

MOTOR POWER

750W

PAYLOAD

375 lb

FOLDABLE

Not foldable

BRAND WARRANTY

2-year

Description 1

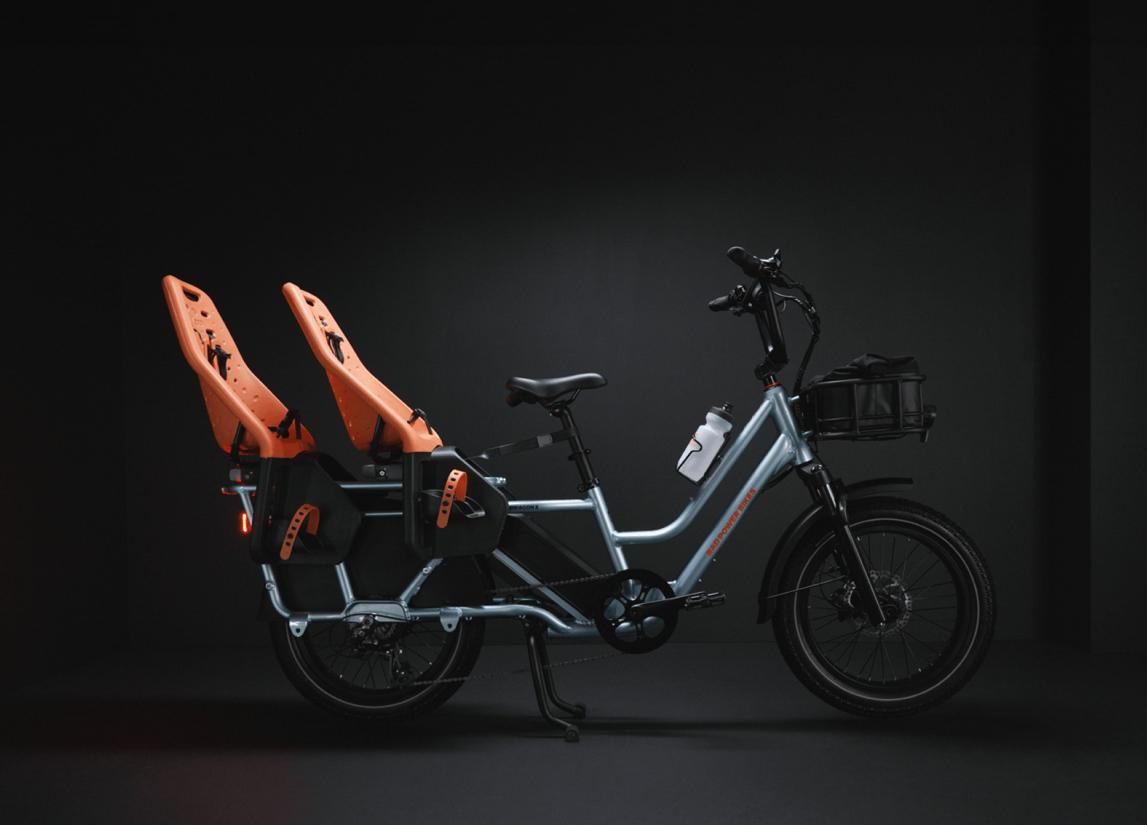

Wriggly cargo welcome

Fun fact: Parents on our design team helped develop the RadWagon 5. They’ll be the first to tell you that kids love the open-air rides. With new family-friendly accessory combos, you can customize for the perfect school drop-off or a fun weekend pick-me-up.

Description 2

Industry-leading safety

The Safe Shield Battery with thermal-resistant technology sets a bold new standard for ebike safety — and for even greater rider confidence, the RadWagon 5 is equipped with turn signals, hydraulic disc brakes, and a brighter, 200 lumen headlight.

Description 3

A workhorse (on wheels!)

We’ve upped the power for faster hill climbing — even when fully-loaded.

Description 2

Easy, breezy rides

It doesn’t get more comfortable than this. There’s front suspension for unexpected bumps, a lower center of gravity for added stability, and a responsive torque sensor for a consistently natural ride feel.

Geometry

Product Size Diagram
Variant Size
Rider Heights 4’11”-6’3″ (150-190 cm)
Bike Weight 86 lb (39 kg), 75.6 lb (34.3 kg) with battery removed
Payload 375 lb, 265 lb max rider weight
Rear Rack Payload 120 lb (54.4 kg)
Handlebar Height 44″ (111.8 cm)
Reach 14.2″ (36 cm)
Seat Height From ground: 30.5″ – 41.8″ (77.5 – 106.1 cm)
From pedal bottom stroke: 25″ – 37″ (64 – 94 cm)
Stepover Height 19.8″ (50.3 cm)
Standover Height 21″ (53.3 cm)
Total Length 76″ (193 cm)
Wheelbase 50.7″ (128.8 cm)
Seat Tube Length 13.5″ (34.2 cm)

Specs & Details

Electronics
Battery 15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271
Charger 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Class Class switchable 1 to 3. Ships in Class 2 status.
Display Rad custom color display. See Display section below for details.
Hub Motor Rear hub 750W, 90 Nm. Stated wattage is manufacturer’s rated capacity; actual ground wattage < 750W to meet regulations and may vary by riding conditions.

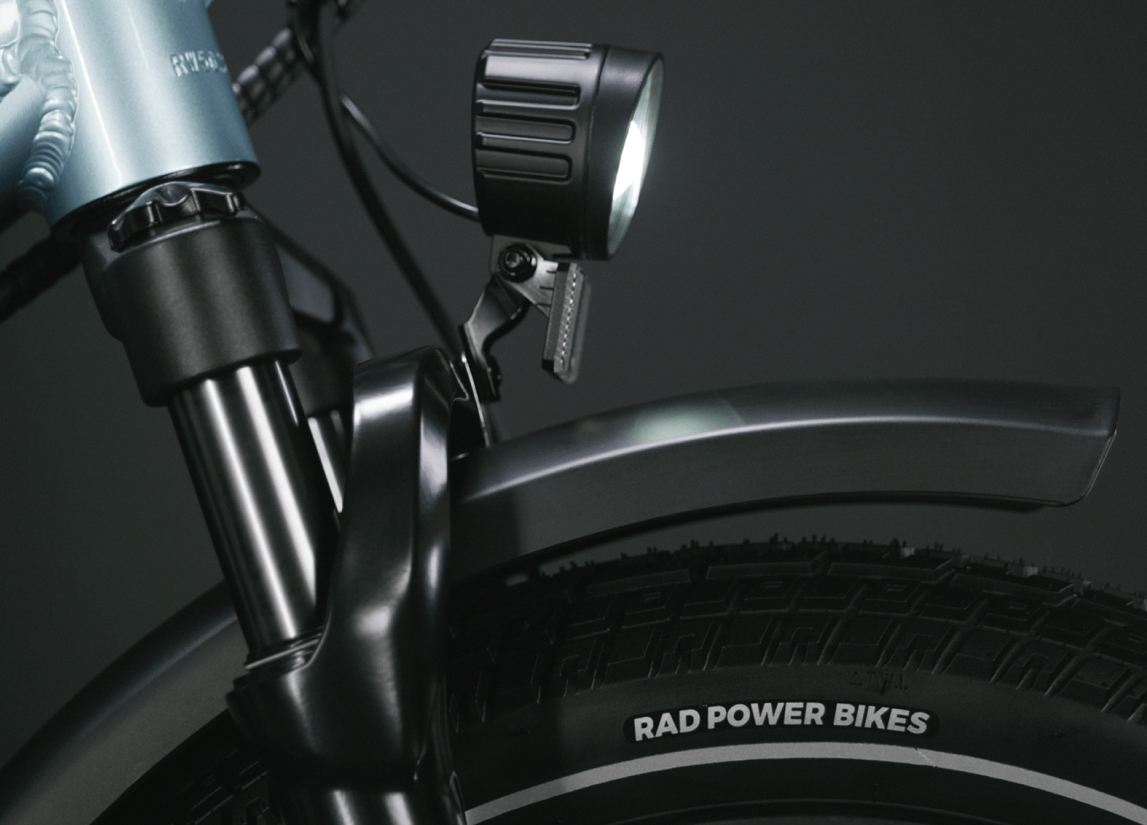

Lights Auto-on feature. Front: 450 lumens LED with reflector. Rear: Integrated taillight with brake light & turn signals.
Pedal Assist Torque sensor, 5 PAS Levels, plus a zero assist option
Range Estimated 20–60 miles per charge
Throttle Half twist grip throttle
UL Status UL Certified to UL 2849 and UL 2271
USB Ports One USB-C port, located on display
Components
Bell Yes
Brake System Tektro Hydraulic Disc HD-E395
Brake Pads Tektro Semi-Metallic E11.11
Brake Rotors 180 mm x 2.3mm
Crank Set 50T with dual sided chain ring cover, 170mm crank arms
Derailleur 7-Speed Shimano
Fenders Full coverage front and rear, plus integrated wheel cover
Fork RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle
Frame Aluminum
Freewheel/Cassette 7-speed freewheel, 11-34T
Gearing 1×7 speed
Grips Ergonomic rubber comfort grips
Handlebar Aluminum, 680 mm wide
Kickstand Dual leg center stand, spring loaded, steel
Pedals Composite platform, CrMo axle with reflectors, standard 9/16″ x 20 TPI threading
Rear Rack Integrated, 120 lb (54.4 kg) carrying capacity
Saddle Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
Seatpost Telescoping, 552 mm x 34.9 mm
Seatpost Clamp 40 mm
Shifter Shimano, 7-speed thumb shifter
Stem 35mm A-head
Tires Kenda 20″ x 3.3″
