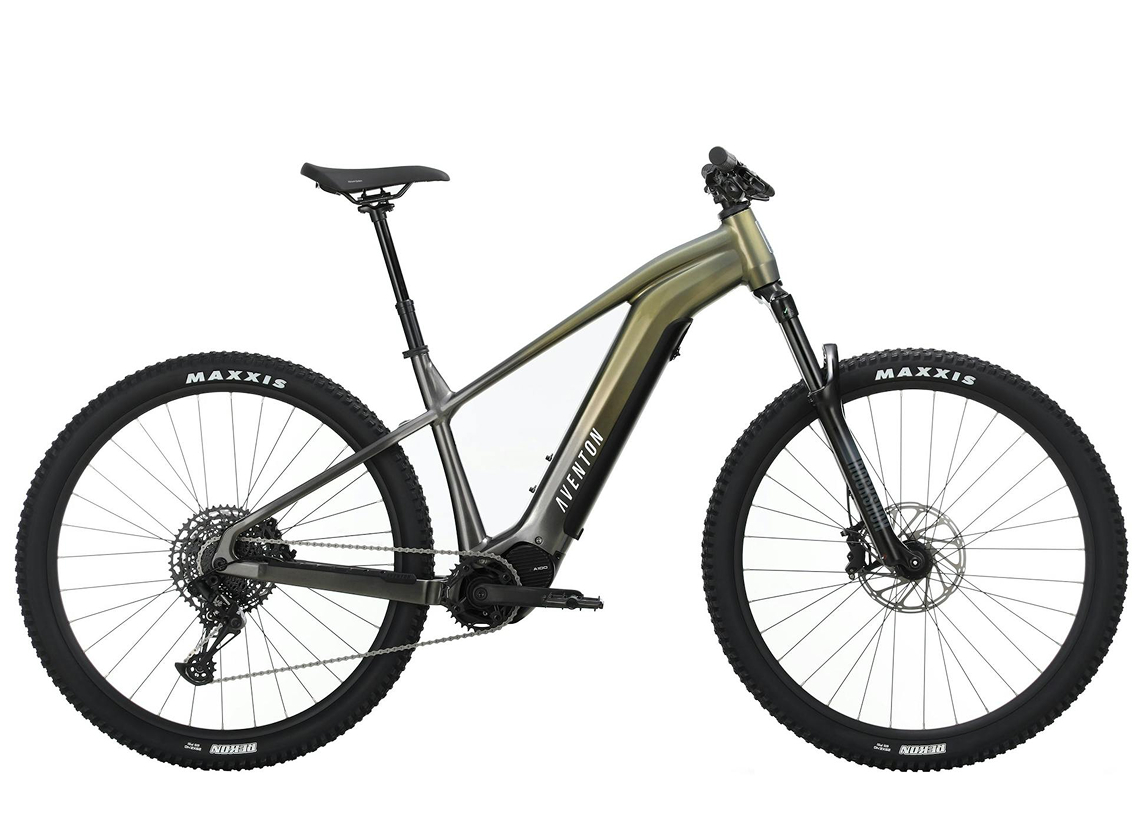

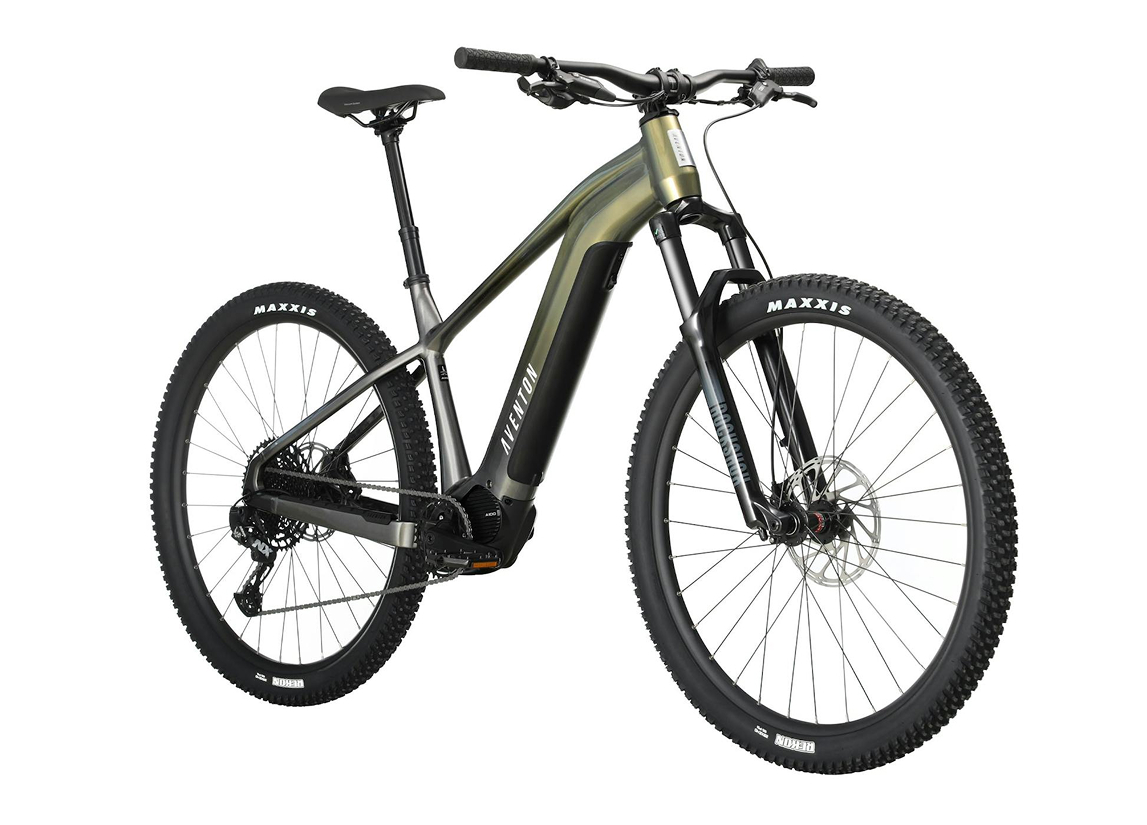

Aventon – Ramblas Ebike

$2,599.00

This e-bike is available through our official partner brand. Prices are subject to change depending on market conditions. Call us at 310-303-3189 for the latest quote.
Note: Local pickup is available; shipping is not available.

📦 Stock status: outofstock
🏷️ Brand: AVENTON

TOP SPEED

20+ mph

RANGE

UP-TO 90 miles

MOTOR POWER

750W Peak

PAYLOAD

300 lbs

FOLDABLE

Not Foldable

BRAND WARRANTY

2-year

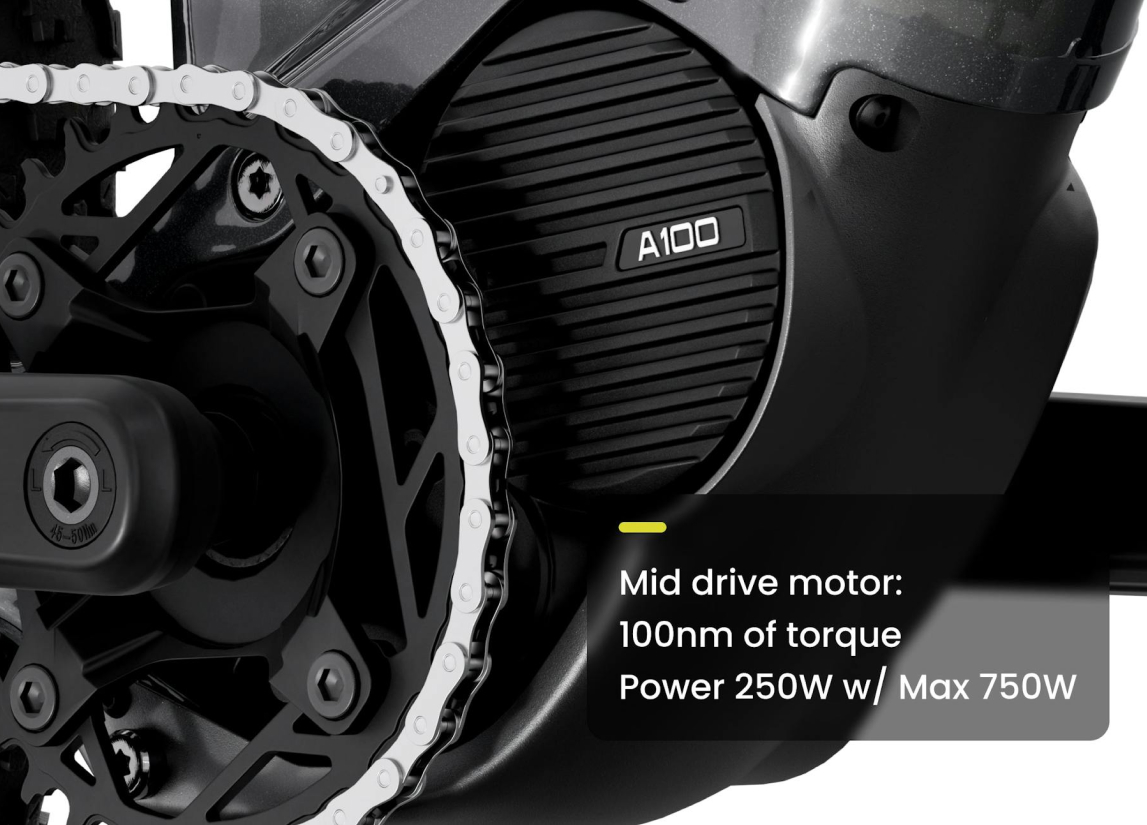

Mid-Drive Motor & Battery

Mid-Drive Motor & Battery

Aventon’s mid-drive motor is designed to give riders full control over their riding experience. With its 250 watts of sustained power, 750 watts at peak power, 36V battery and adjustable three pedal assist levels, you can customize your ride to your liking for trail and daily commutes.

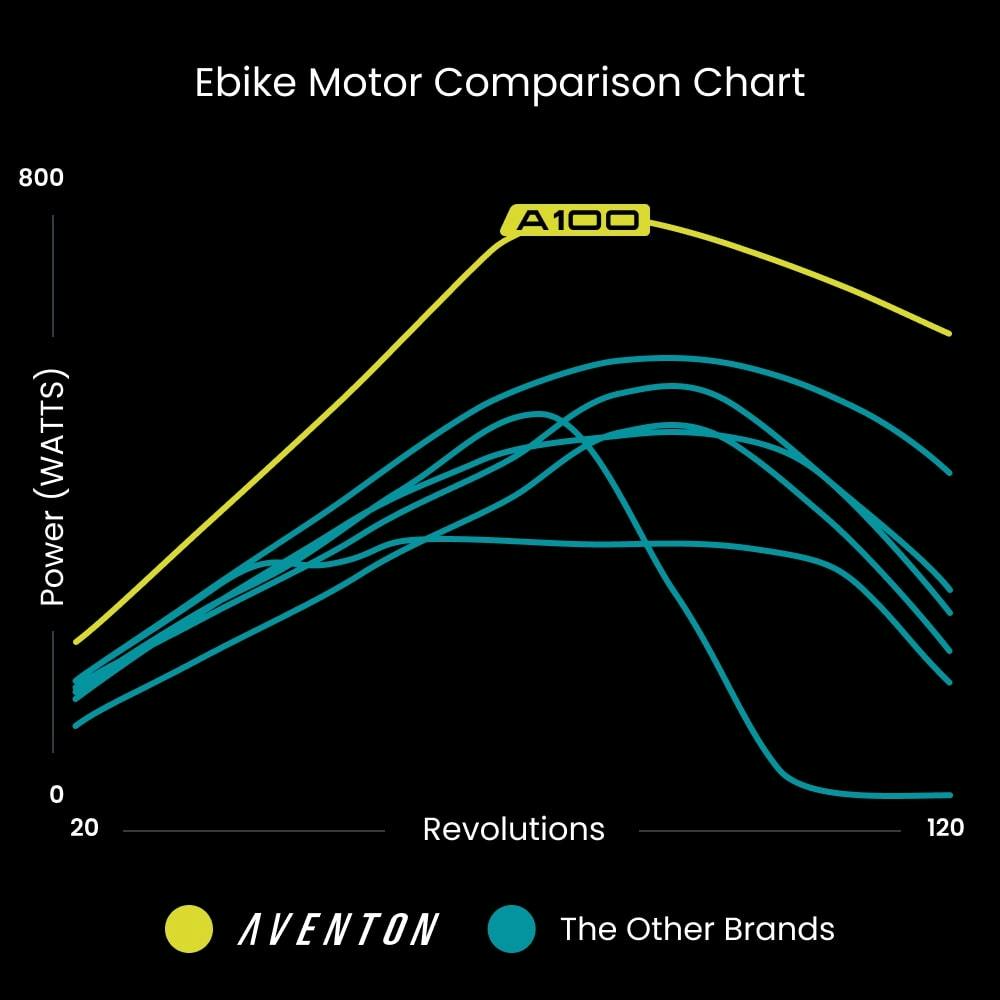

100 Nm of Torque

100 Nm of Torque

Ramblas’ A100 motor produces a smoother, more natural feel when accelerating and decelerating. Its 100 Nm of torque helps you quickly reach peak power when needed, then gradually tapers off to a more consistent output.

Uphill Start Assist

Uphill Start Assist

When the best views are halfway up the hill, Uphill Start Assist is there to keep you climbing when you’re ready to start back up. Enjoy increased torque and power output during the first initial crank rotation when attempting to mount the bike and start pedaling on an incline.

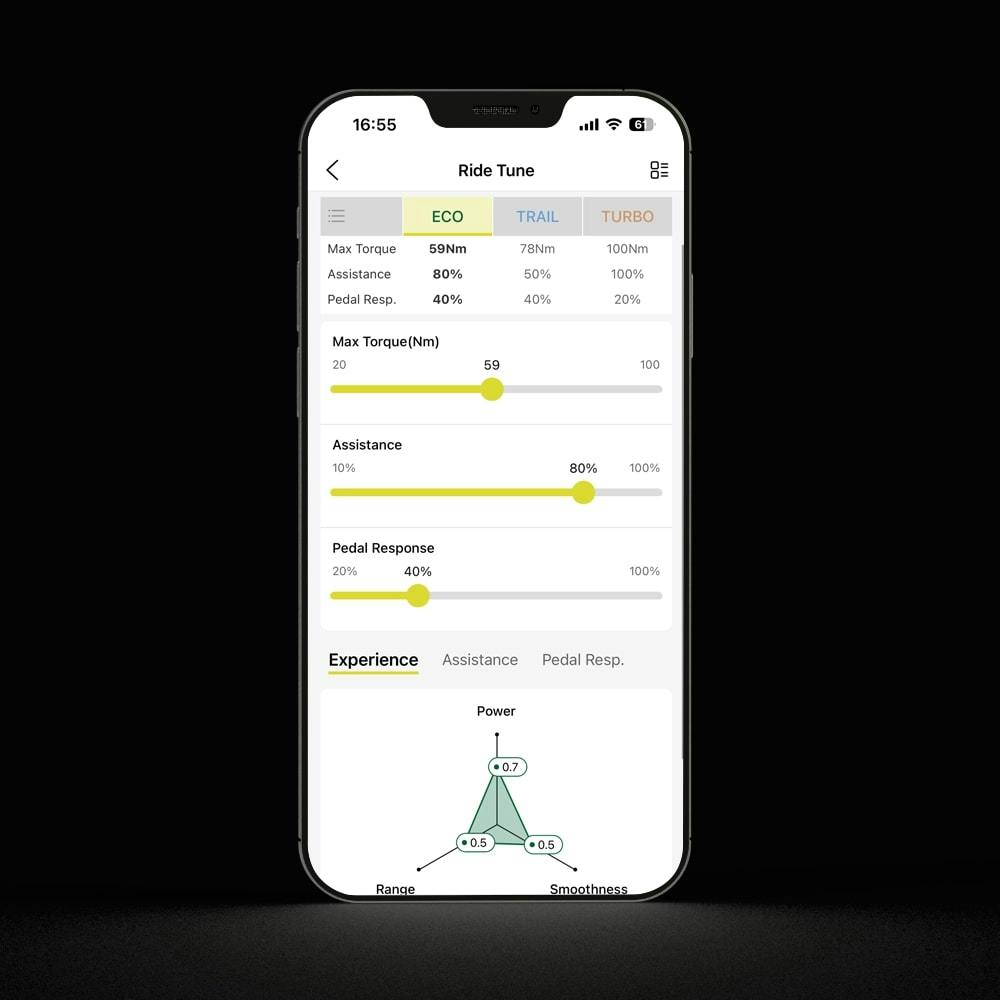

Ride Tune

Ride Tune

Ramblas’ Ride Tune enables motor customization via the Aventon app for a more personalized riding experience. Fine-tune Assistance, Max Torque, and Pedal Response, so you can optimize the full potential of your Ramblas.

Geometry

Product Size Diagram
Frame Size Small Medium Large Extra Large
Wheel Size 27.5″ 29″ 29″ 29″
Seat Tube Length 380mm 410mm 450mm 490mm
Top Tube Length Horizontal 594.5mm 616.5mm 642mm 668mm
Bottom Bracket Drop 55mm 55mm 55mm 55mm
Head Tube Length 125mm 125mm 135mm 135mm
Head Tube Angle 66.5° 66.5° 66.5° 66.5°
Seat Tube Angle 74.5° 74.5° 74.5° 74.5°
Rear Chainstay Length 465mm 465mm 465mm 465mm
Front Wheel Center 720mm 744mm 770.5mm 796mm
Wheelbase 1179.5mm 1203mm 1230mm 1256mm
Reach 415mm 432.5mm 455mm 481mm
Stack Height 640mm 656.5mm 665mm 665mm
Fork Length 530mm 547mm 547mm 547mm
Fork Offset 44mm 44mm 44mm 44mm
Trail 108.6mm 117mm 117mm 117mm
Standover 683mm 702mm 712mm 719.5mm
Rider Height (Range) 155 – 165 cm 5’1″ – 5’5″ 165 – 176 cm 5’5″ – 5’9″ 177 – 188 cm 5’10” – 6’2″ 188 – 195 cm 6’2″ – 6’5″

Specs & Details

General Info
Model Ramblas Ebike
Weight 54 lbs, size large, w/o pedals
Total Weight Limit 300 lbs
Ideal Use Mountain Biking, Urban Riding
Range Up to 90 miles
Pedal Assist 3 Levels (with Ride Tune Customization)
Rider Height 5’1″ – 6’5″
Folding No
Safety Certifications UL and TUV Safety Certified UL 2849 / UL 2271
Water Resistance Bike – IPX6 // Motor – IPX7
Frameset
Fork BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15×110 QR axle, 1.5″ tapered steerer tube. AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5″ tapered steerer tube, Rebound adjust
Frame 6061 Single-Butted Aluminum Alloy
Frame Style Step-Over
Wheelset
Hubs 15×110 32H Front, 12×148 32H Rear
Rim Double Wall Aluminum 32h Front & Rear
Spokes Black Stainless 13 Gauge
Tires S: Maxxis Rekon 27.5×2.4, M/L/XL: Maxxis Rekon 29×2.4
Tubes Butyl Rubber, Presta Valve
Ebike System
Battery Aventon 708 Wh, 36V LG 21700 cells

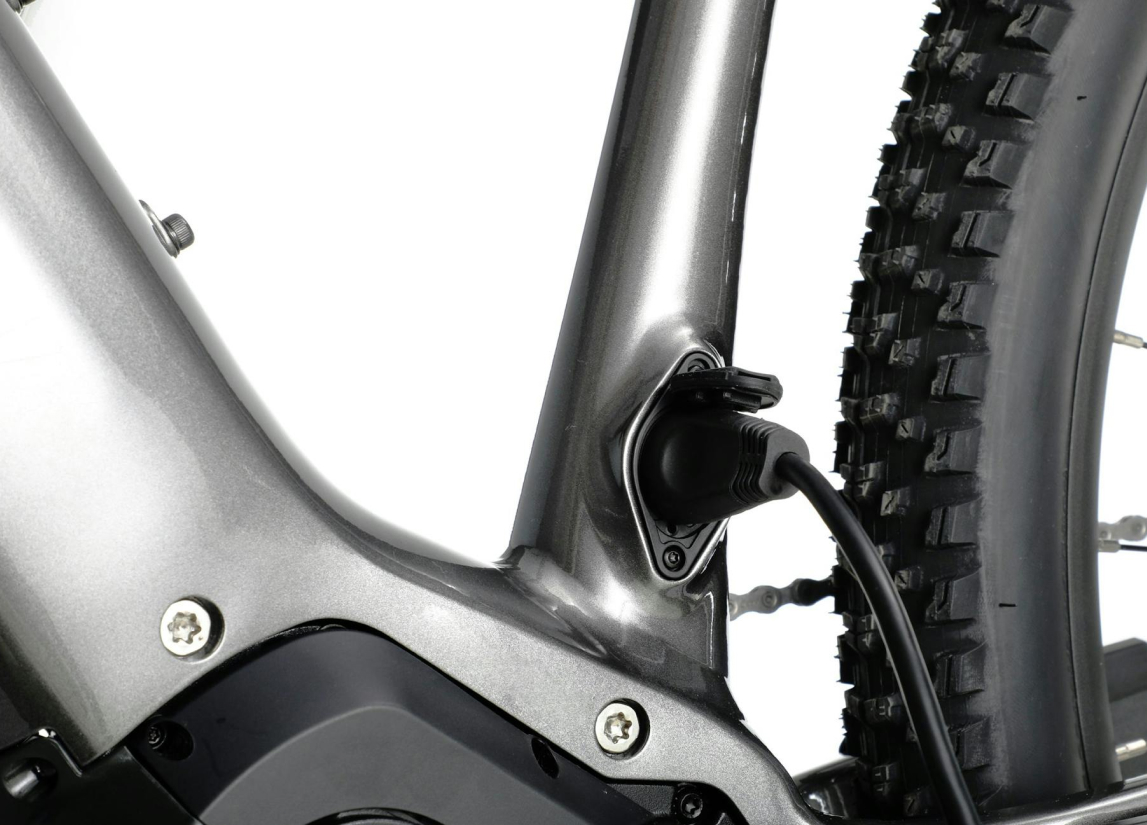

Charger 42V 4A charger
Display LCD Smart “Easy Read”

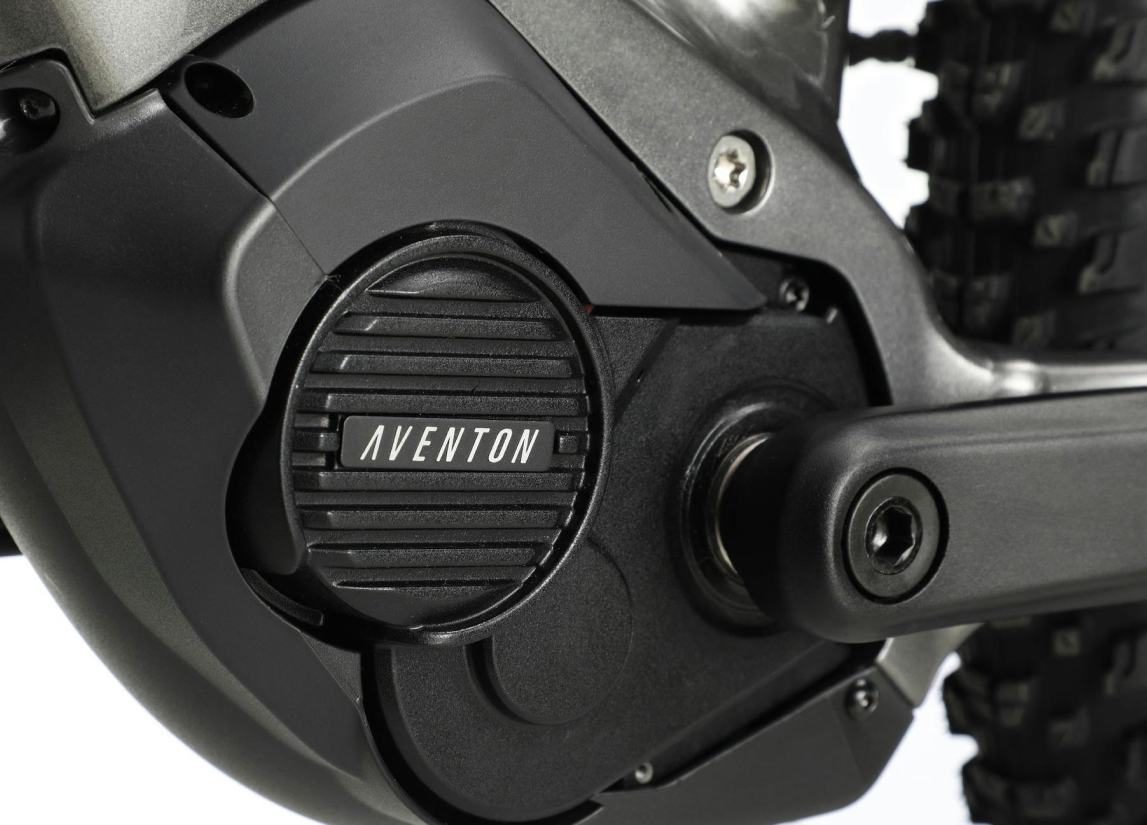

Motor Aventon a100 mid-drive, 36V, 250W sustained, 750W peak, 100Nm torque, IP67 rating
Speed Class 1
Brakes
Rear Brake Rotor Sram 180mm 6 bolt
Front Brake Rotor Sram 200mm 6 bolt
Brakes Sram DB8 mineral 4 piston hydraulic disc brakes
Drivetrain
Rear Derailleur Sram NX Eagle 1×12
Pedals 9/16″ Alloy Platform
Chainring Sram NX 34t
Cassette Sram SX Eagle 1×12 11-50t
Shift Lever Sram NX Eagle 1×12 single click
Cockpit

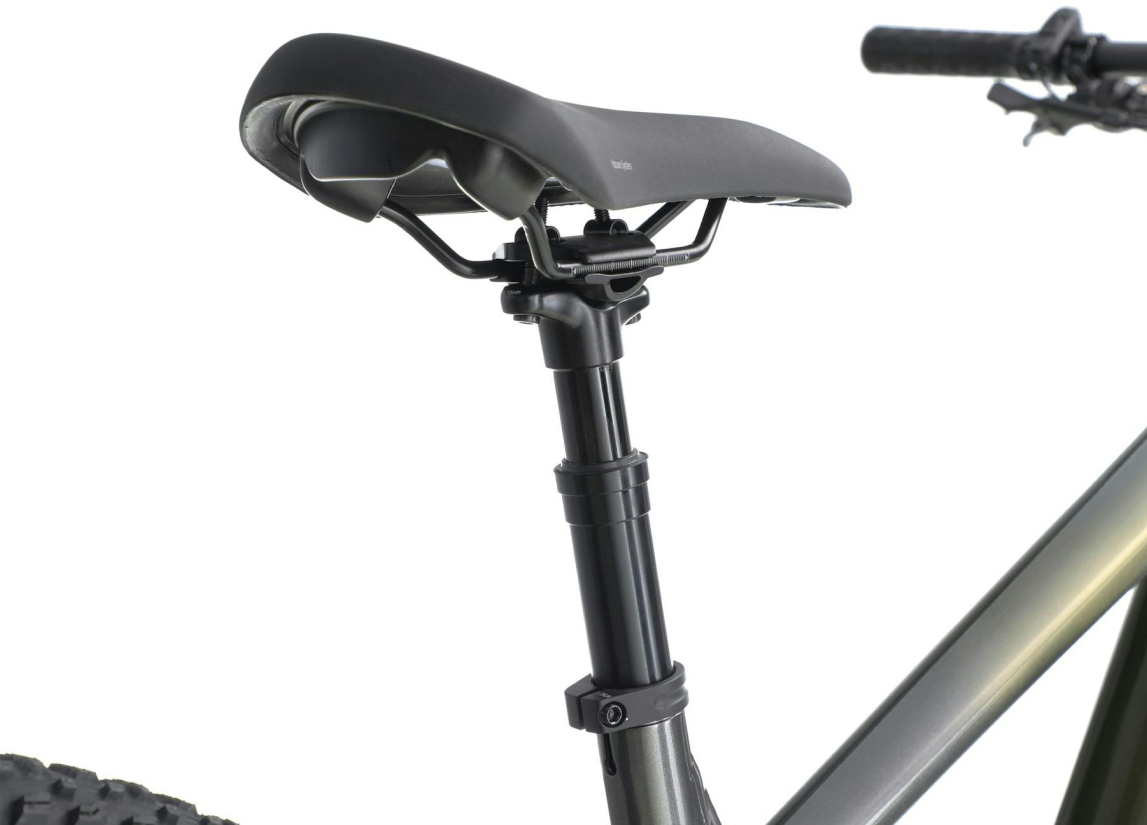

Seatpost 150mm travel (M-XL), 125mm travel (S), 31.6mm Ø, 395mm length

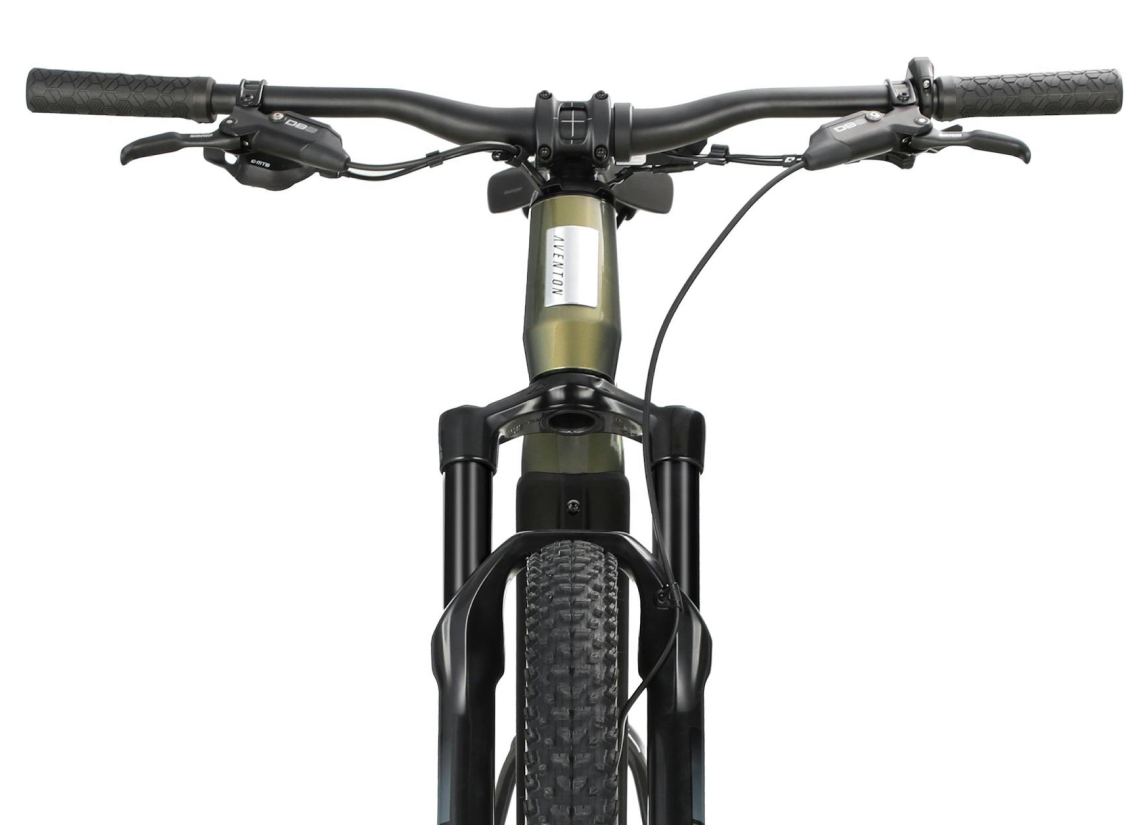

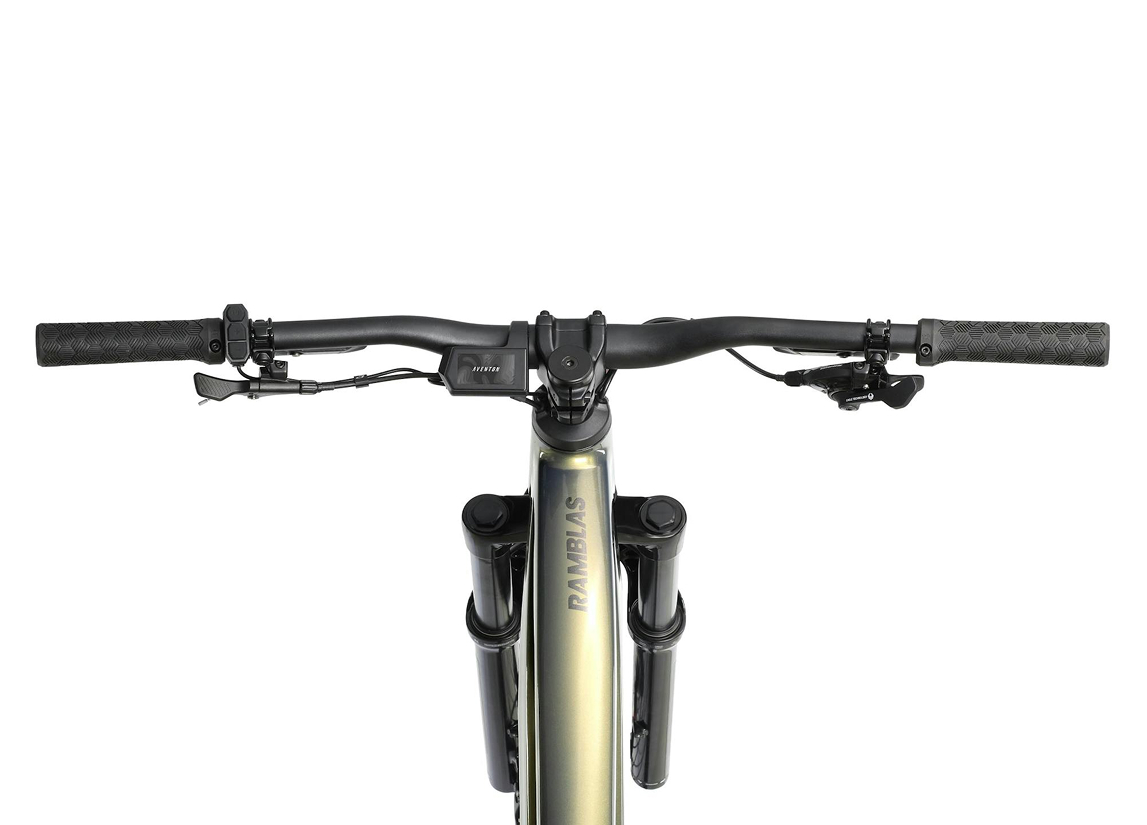

Handlebars 35mm, 9° rise, 720mm width (S), 760mm width (M-XL)
Grips Lock-on
Stem 35mm Ø, 40mm length
Seatpost Clamp 34.9mm
Included Accessories
Kickstand Included in accessory box
Front Head Light Included in accessory box
Fenders Compatible
Miscellaneous
Suspension RockShox 130mm travel
