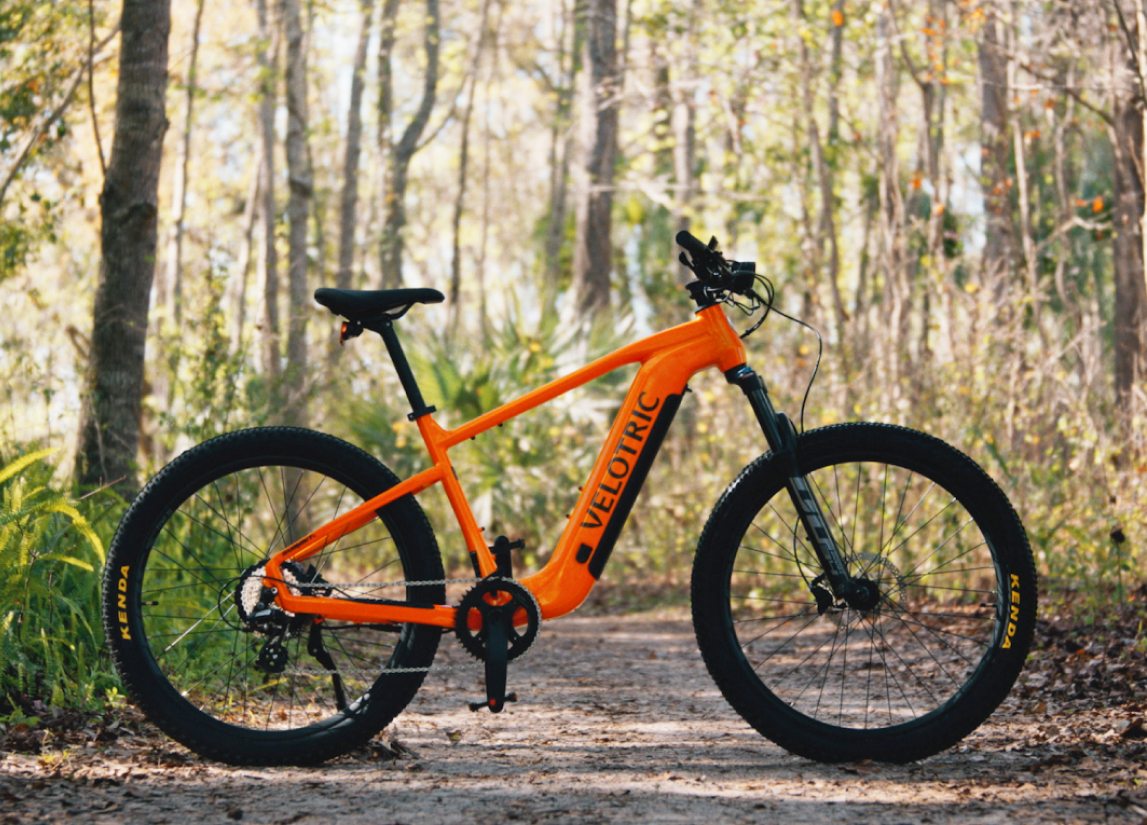

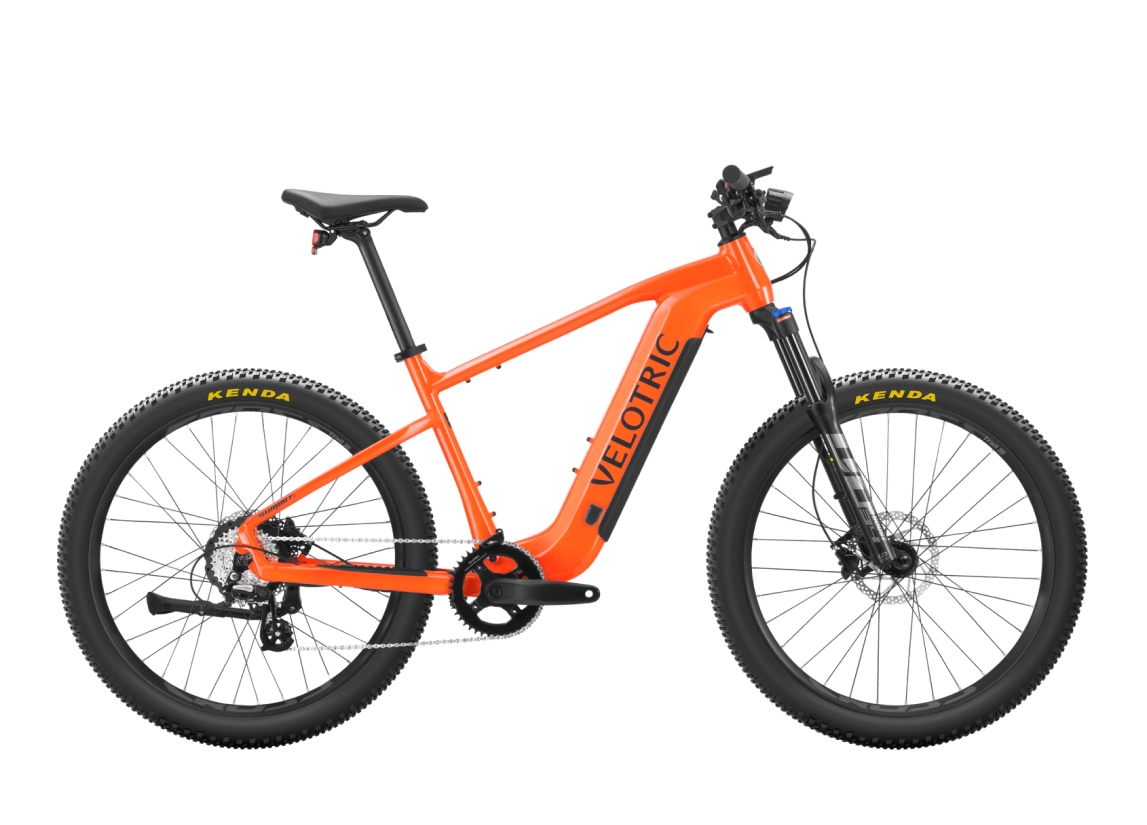

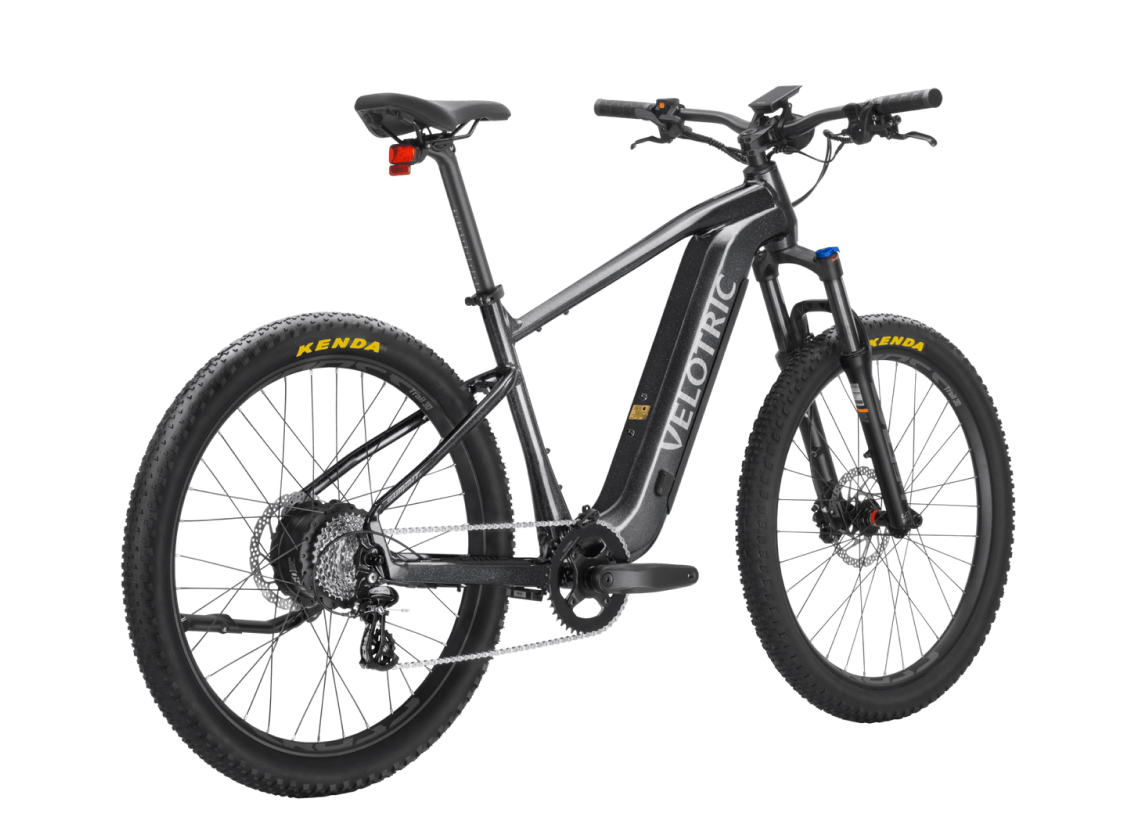

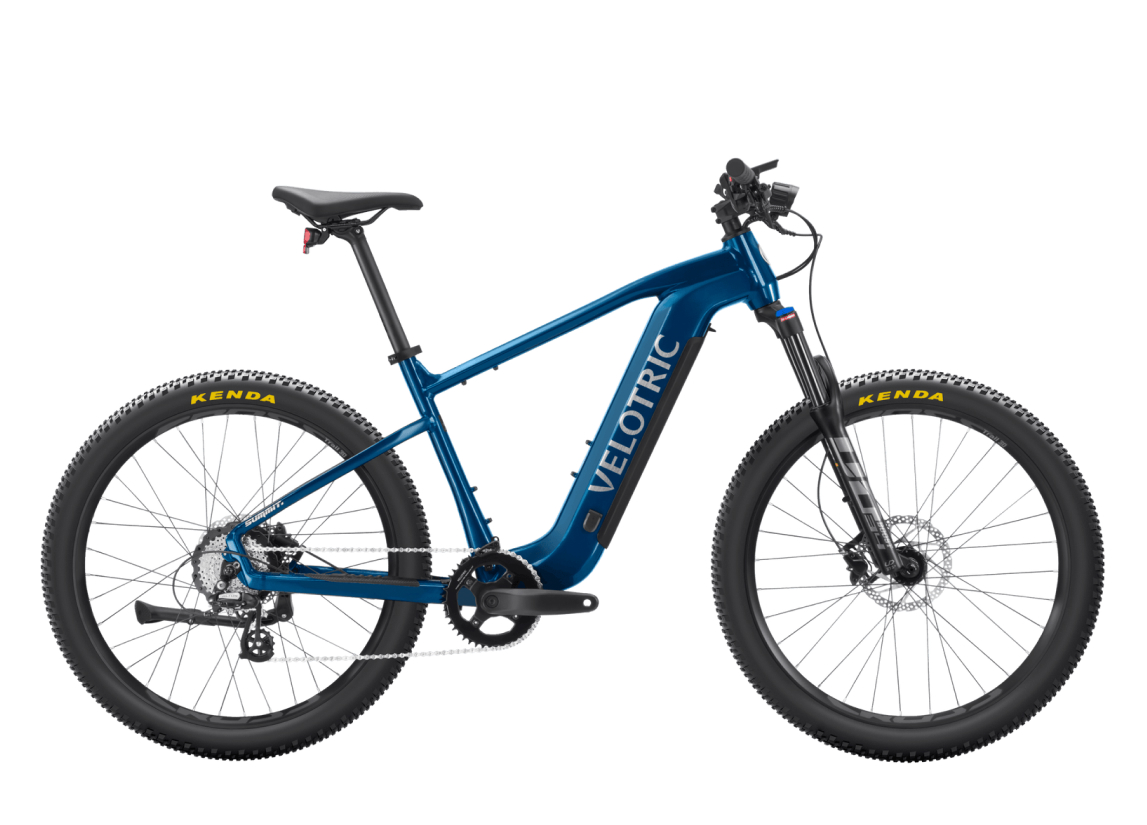

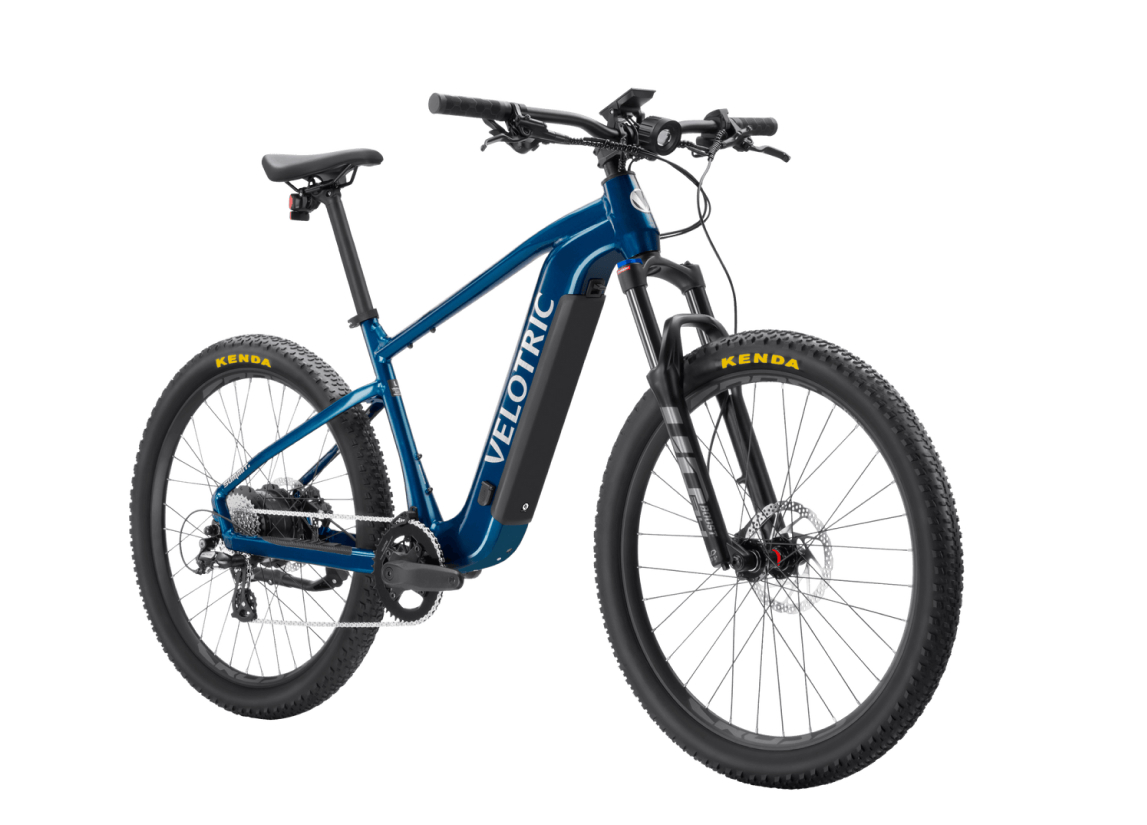

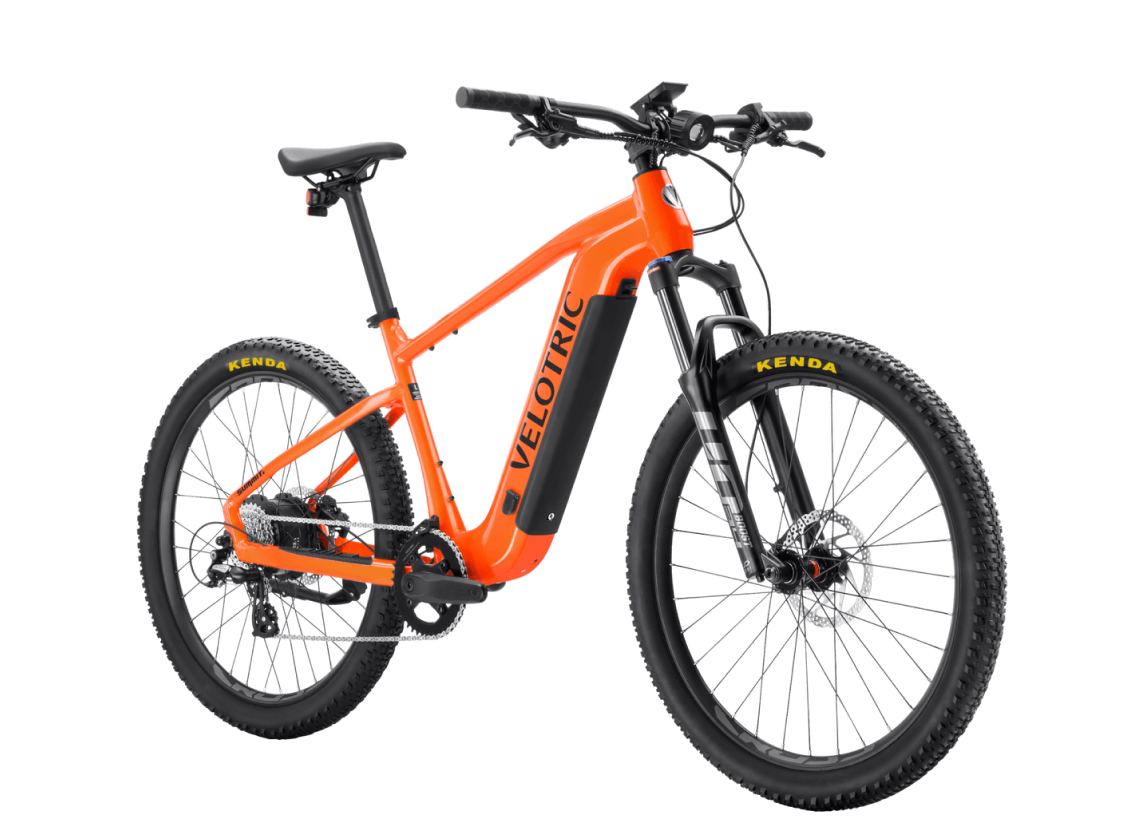

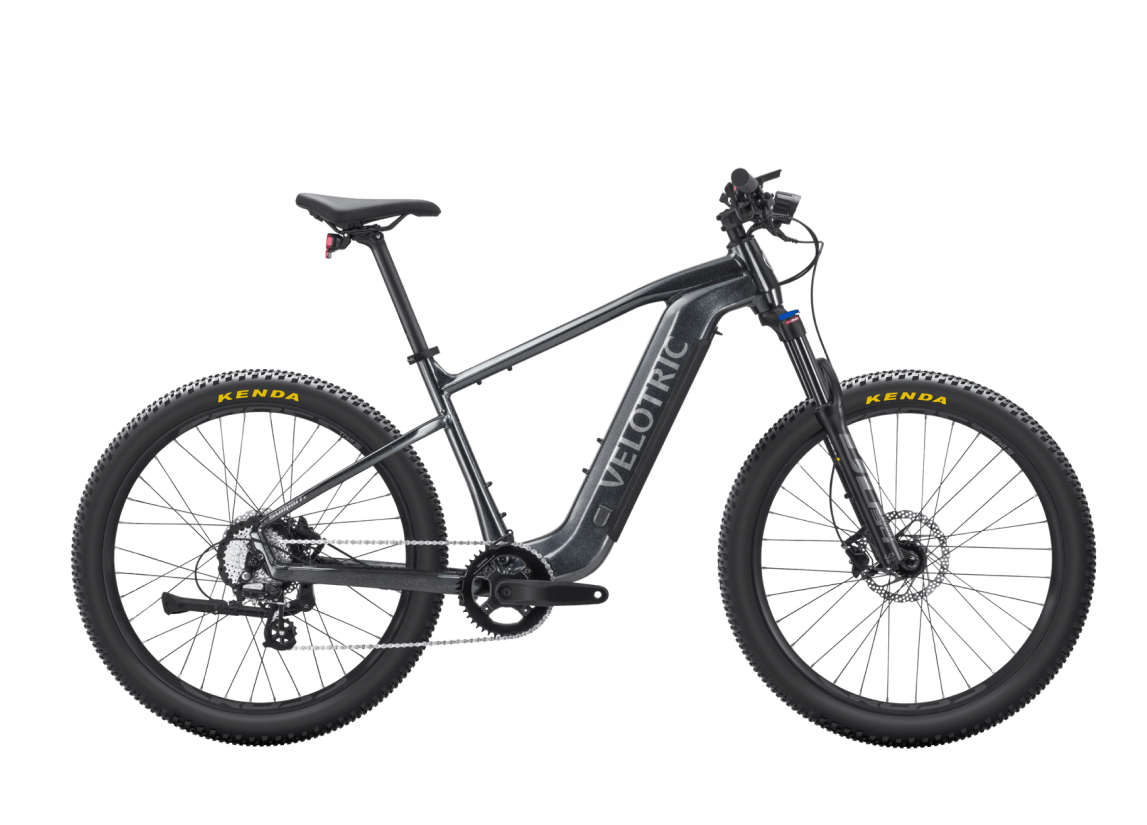

Velotric Summit 1 Ebike

$1,899.00

This e-bike is available through our official partner brand. Prices are subject to change depending on market conditions. Call us at 310-303-3189 for the latest quote.
Note: Local pickup is available; shipping is not available.

📦 Stock status: instock
🏷️ Brand: VELOTRIC

TOP SPEED

28 MPH

RANGE

UP-TO 70 miles

MOTOR POWER

750W Peak

PAYLOAD

440 lbs

FOLDABLE

Not Foldable

BRAND WARRANTY

2-year

Throttle Compatible

High Performance Motor

The Summit 1 boasts a powerful 750W motor paired with 90Nm of torque, delivering unmatched hill climbing capabilities and swift acceleration for conquering mountain trails.

Electronic Shifter

UL2271 Certified Battery

Equipped with high-energy density cells, the Summit 1’s battery delivers an impressive 70-mile range. Its UL2271 certification and IPX7 waterproof rating ensure worry-free safety.

AutoShift

120mm Hydraulic Suspension with Lockout

The hydraulic suspension, featuring 120mm of travel and a lockout function, expertly absorbs impacts and dampens vibrations on uneven terrain, elevating comfort, traction, and control for a smoother, more secure ride.

Auto Mode

SHIMANO Hydraulic Disc Brakes

Equipped with SHIMANO 180mm hydraulic disc brakes, experience superior braking power that provides ultimate control and confidence under any riding conditions.

Geometry

Product Size Diagram

Measurement Regular Large
Height 5’1” ~ 5’10” 5’8” ~ 6’6”
Seat Tube Length 410 mm 475 mm
Head Tube Length 130 mm 135 mm
Stack 644 mm 649 mm
Reach 388 mm 402 mm
Stand-Over Height 710 mm 749 mm
Top Tube Length (Horizontal) 610 mm 690 mm
Min Saddle Height 775 mm 830 mm
Max Saddle Height 945 mm 1001 mm

Specs & Details

Size Guide
Bike Size Regular / Large
User Height Range Regular: 5’1″ ~ 5’10” / Large: 5’8″ ~ 6’6″
Frameset
Frame Triple-Butted Aluminum Alloy
Fork Hydraulic suspension, 120mm travel with Lock-out, 15x110mm thru-axle
Electronics
Motor 48V, 750W, 90Nm
Battery 48V, 705.6Wh, IPX7, UL 2271 Certified
Cell Samsung/LG 21700, UL 2580 Certified
Charger 48V, 3A Fast Charger
Sensor Torque/Cadence

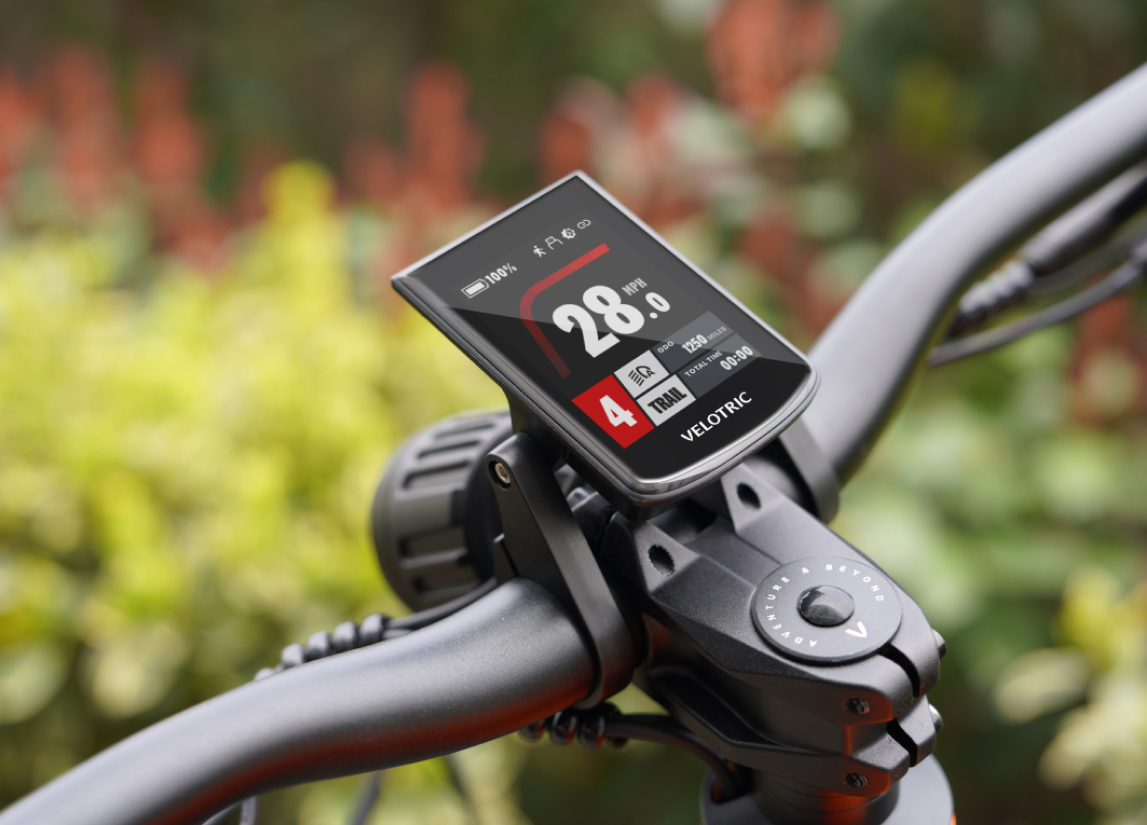

Display 2.8″ Full color, high brightness, Bluetooth, adjustable angle
USB Port USB Type-A phone charge
Security Apple Find My™
Throttle Trigger-control, removable
Pedal Assist 3 Modes × 5 Levels
Walk Mode 2.9 MPH
Front Light Light sensing 130 Lux high-output integrated LED, adjustable angle
Rear Light Brake highlight, rear light steady/flash
Water Resistant IPX6
Speed & Range

*Tested with a 187-lb rider using PAS 1 in Eco mode on flat roads.

Default Speed 20 MPH
Max Speed Adjustable Range 12~28 MPH
Class 1 / 2 / 3
Throttle Range 60 Miles
Pedal Assist Range 70 Miles
Drivetrain
Chainrings BCD 104, narrow wide chainring
Crankset Aluminum Alloy, 170mm
Cassette 8-speed
Rear Derailleur SHIMANO 8-speed
Shift Lever SHIMANO 8-speed
Chain KMC 8-speed
Brakes
Brake SHIMANO Hydraulic Disc Brake
Rotors 180mm front & rear
Brake Levers Aluminum Alloy, with power cutoff
Wheels
Rims Double-wall Aluminum Alloy
Tires Kenda 27.5×2.6″ MTB puncture-resistant tires
Cockpit
Handlebar Aluminum Alloy, Φ31.8mm, 760mm (R)/780mm (L)
Grips Velotric sports grips, lockable
Stem Aluminum Alloy, φ31.8mm, 35mm (R)/50mm (L)
Saddle VELOTRIC ergonomic seat
Seatpost Aluminum Alloy, φ30.9mm, 350mm
Clamp Aluminum Alloy, quick release
Supports
Fenders Optional
Rear Rack Optional
Pedals Aluminum Alloy
Kickstand Aluminum Alloy, included, rear mount
Weight & Load
Bike Weight 62 lbs
Max Bike Load Capacity 440 lbs
Certification
UL Certification UL 2849
ISO Standard ISO 4210
