Description
| Electric Bike Electronics | |
|---|---|
| Battery | 14 Ah 672 Wh semi-integrated battery Bikes shipped to NYC are compliant with UL 2849 and 2271. |
| Charger | 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Display | LCD display. See Display section below for details. |
| Hub Motor | Rear hub 750W Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |

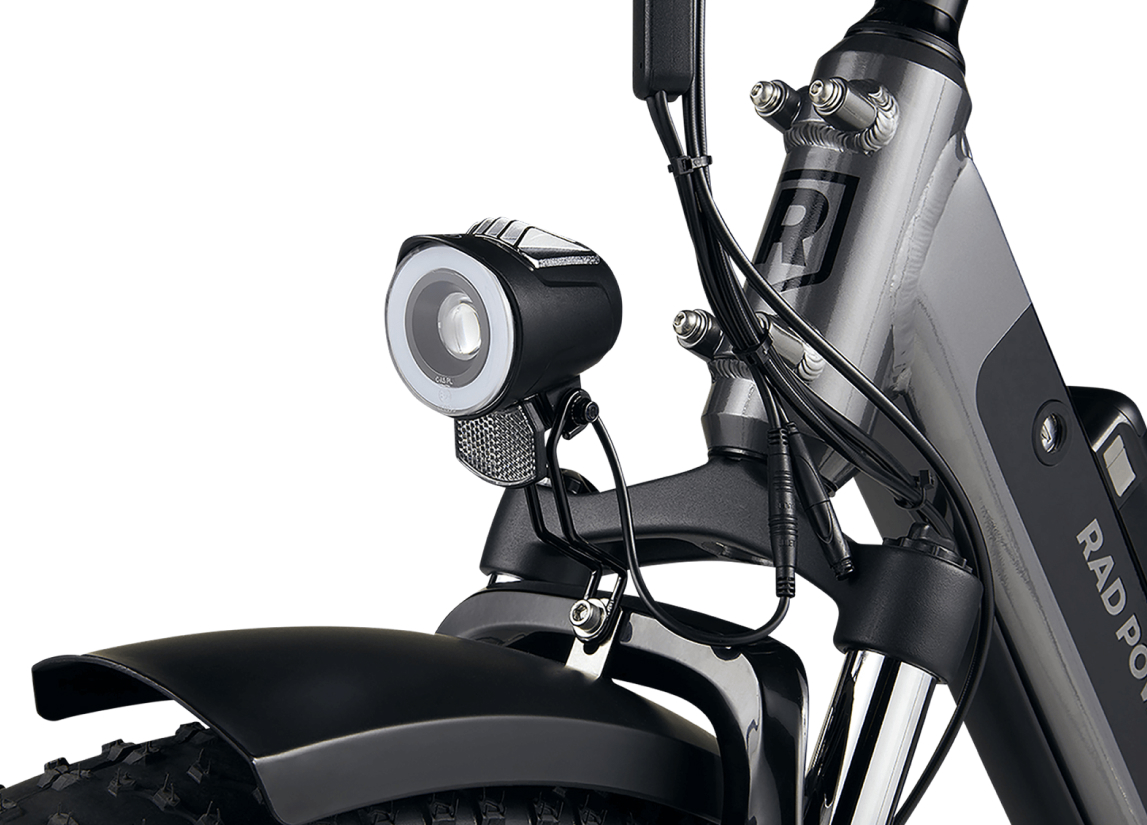

| Lights | Auto-on feature Front: LED headlight Rear: Integrated taillight with brake light |
| Pedal Assist | Pedal cadence sensor, 5 PAS Levels, plus a zero assist option |
| Range | Estimated 25-45 miles per charge |
| Throttle | Half twist throttle |
| USB Ports | Optional, sold separately |
| To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility. | |
| Electric Bike Components | |
|---|---|
| Bell | Yes |
| Brake System | Rad Power Bikes approved hydraulic brakes |
| Brake Pads | Semi-metallic |
| Brake Rotors | 180 mm |
| Crank Set | 42T with dual-sided aluminum chainring guard, 170 mm crank arms |
| Derailleur | 7-Speed Shimano |
| Fenders | Full coverage front and rear fenders |
| Fork | RST spring fork, 60 mm travel, 277 mm steerer tube |
| Frame | Aluminum |
| Freewheel/Cassette | 7-speed freewheel, 11-34T |
| Gearing | 1×7 speed |
| Grips | Ergonomic imitation leather comfort grips |
| Handlebar | Aluminum, 700 mm wide |
| Kickstand | Heavy-duty aluminum with wide plastic foot |
| Pedals | Forged aluminum platform, CrMo axle with reflectors, standard 9/16″ x 20 TPI threading |
| Rear Rack | Optional, sold separately |
| Saddle | Ergonomic seat with lifting handle |
| Seatpost | 390 mm x 27.2 mm |
| Seatpost Clamp | Quick release |
| Shifter | 7-speed thumb shifter |
| Stem | 50 mm + 30º (15 mm rise) |

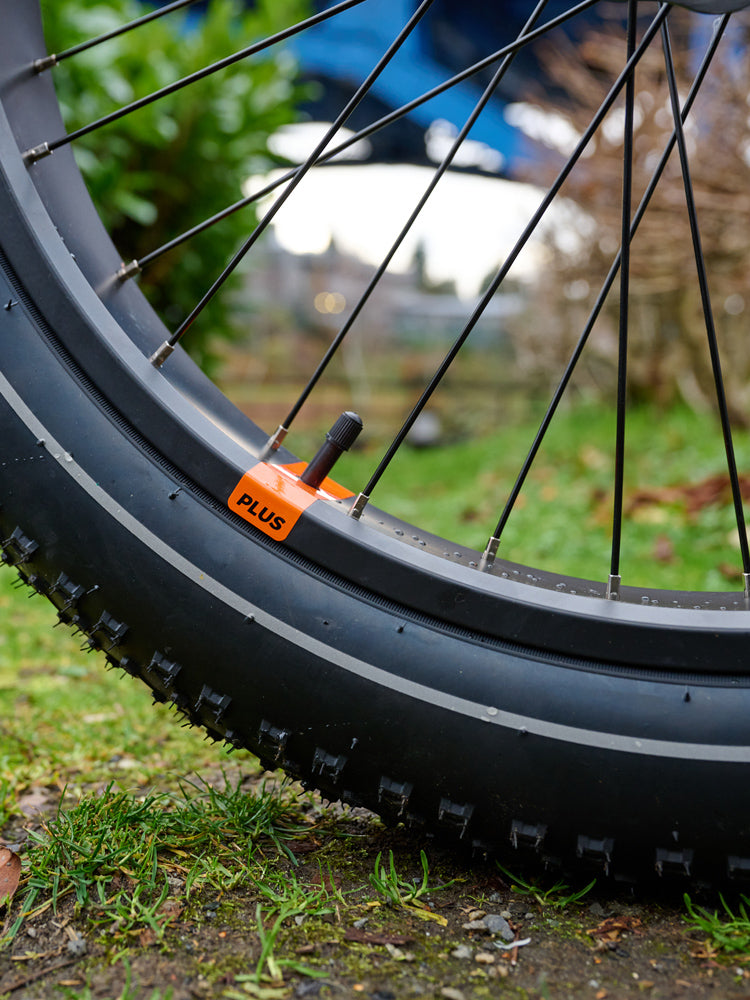

| Tires | Kenda Juggernaut 26″ x 4″ *tires received may not include branding |
| To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility. | |
Geometry
- Rider Heights: 5’2″ – 6’2″ (Approx. inseam between 25″ – 33.5″)
- Bike Weight: Total: 72.5 lb, 64.8 lb with battery removed
- Payload: 275 lb
- Handlebar Height: 45.7″ (116 cm)
- Reach: 17″ (43 cm)
- Seat Height: From ground: 29″ – 38.5″ (From pedal bottom stroke: 25″ – 34″)
- Standover Height: 22.5″ (57 cm)
- Total Length: 77″ (196 cm)
- Wheelbase: 47.8″ (121 cm)
- Seat Tube Length: 14.8″ (37.6 cm)
